2154828-1
ActiveTE Connectivity Raychem Cable Protection

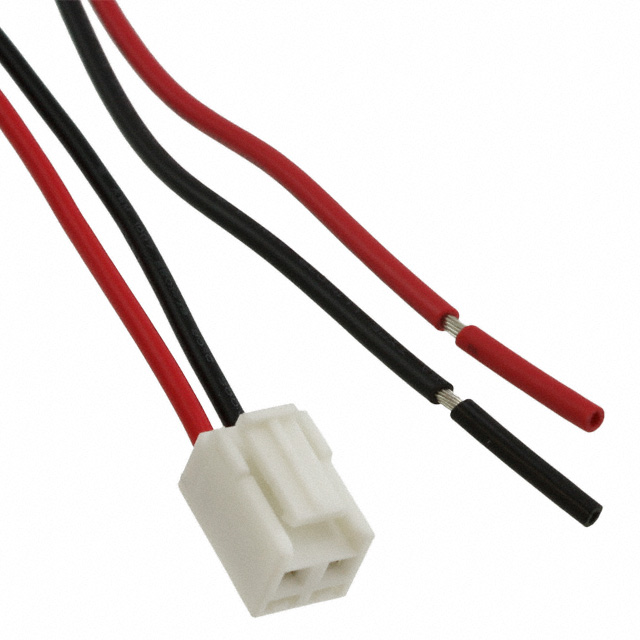

EPII 2 POS CABLE ASSEMBLY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2154828-1
ActiveTE Connectivity Raychem Cable Protection
EPII 2 POS CABLE ASSEMBLY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2154828-1 |
|---|---|
| Cable Termination | Crimp |
| Color | Multiple, Individual |
| Connector Type | Plug to Individual Wire Leads |
| Contact Finish | Tin |
| Length | 152.4 mm |
| Length | 6 " |
| Length | 0.5 ' |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Pitch - Connector | 0.156 in |
| Pitch - Connector | 3.96 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 13.38 | |
| 10 | $ 12.10 | |||
| 25 | $ 11.78 | |||
| 50 | $ 11.33 | |||
| 100 | $ 10.50 | |||
| 250 | $ 10.44 | |||
| 500 | $ 10.05 | |||
| 1000 | $ 8.96 | |||
Description
General part information
Inverted Thru-Board Interconnects Series
2 Position Cable Assembly Rectangular Plug to Individual Wire Leads 0.500' (152.40mm, 6.00")
Documents
Technical documentation and resources
