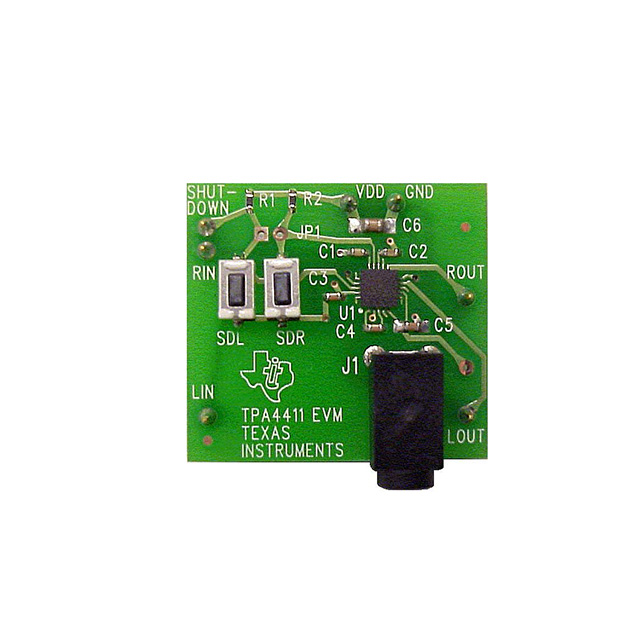

Specification	TPA4411EVM

Amplifier Type	Class AB
Board Type	Fully Populated
Channels	2
Contents	Board
Load Impedance	16 Ohm
Maximum Output Power (per Channel)	100 mW
Output Type	2-Channel (Stereo), Headphones
Supplied Contents	Board(s)
Utilized IC / Part	TPA4411
Voltage - Supply (Maximum)	4.5 V
Voltage - Supply (Minimum)	1.8 V

TPA4411 Series

Part	Features	Package Width	Package Name	Package Length	Package / Case	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Max)	Operating Temperature (Min)	Channels	Maximum Output Power (per Channel)	Load Impedance	Type	Mounting Type	Output Type	Board Type	Supplied Contents	Utilized IC / Part	Amplifier Type	Contents
Texas Instruments TPA4411RTJRG4	Depop Short-Circuit and Thermal Protection Shutdown	4 mm	20-QFN	4 mm	20-WFQFN Exposed Pad	4.5 V	1.8 V	85 °C	-40 °C	2	100 mW	16 Ohm	Class AB	Surface Mount	2-Channel (Stereo) Headphones
Texas Instruments TPA4411YZHR	Depop Short-Circuit and Thermal Protection Shutdown	2.16 mm	16-DSBGA	2.24 mm	16-UFBGA DSBGA	4.5 V	1.8 V	85 °C	-40 °C	2	100 mW	16 Ohm	Class AB	Surface Mount	2-Channel (Stereo) Headphones
Texas Instruments TPA4411MRTJRG4	Depop Short-Circuit and Thermal Protection Shutdown	4 mm	20-QFN	4 mm	20-WFQFN Exposed Pad	4.5 V	1.8 V	85 °C	-40 °C	2	100 mW	16 Ohm	Class AB	Surface Mount	2-Channel (Stereo) Headphones
Texas Instruments TPA4411EVM						4.5 V	1.8 V			2	100 mW	16 Ohm			2-Channel (Stereo) Headphones	Fully Populated	Board(s)	TPA4411	Class AB	Board
Texas Instruments TPA4411RTJT	Depop Short-Circuit and Thermal Protection Shutdown	4 mm	20-QFN	4 mm	20-WFQFN Exposed Pad	4.5 V	1.8 V	85 °C	-40 °C	2	100 mW	16 Ohm	Class AB	Surface Mount	2-Channel (Stereo) Headphones
Texas Instruments TPA4411MRTJR	Depop Short-Circuit and Thermal Protection Shutdown	4 mm	20-QFN	4 mm	20-WFQFN Exposed Pad	4.5 V	1.8 V	85 °C	-40 °C	2	100 mW	16 Ohm	Class AB	Surface Mount	2-Channel (Stereo) Headphones
Texas Instruments TPA4411RTJR	Depop Short-Circuit and Thermal Protection Shutdown	4 mm	20-QFN	4 mm	20-WFQFN Exposed Pad	4.5 V	1.8 V	85 °C	-40 °C	2	100 mW	16 Ohm	Class AB	Surface Mount	2-Channel (Stereo) Headphones
Texas Instruments TPA4411YZHT	Depop Short-Circuit and Thermal Protection Shutdown	2.16 mm	16-DSBGA	2.24 mm	16-UFBGA DSBGA	4.5 V	1.8 V	85 °C	-40 °C	2	100 mW	16 Ohm	Class AB	Surface Mount	2-Channel (Stereo) Headphones
Texas Instruments TPA4411MRTJT	Depop Short-Circuit and Thermal Protection Shutdown	4 mm	20-QFN	4 mm	20-WFQFN Exposed Pad	4.5 V	1.8 V	85 °C	-40 °C	2	100 mW	16 Ohm	Class AB	Surface Mount	2-Channel (Stereo) Headphones

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
