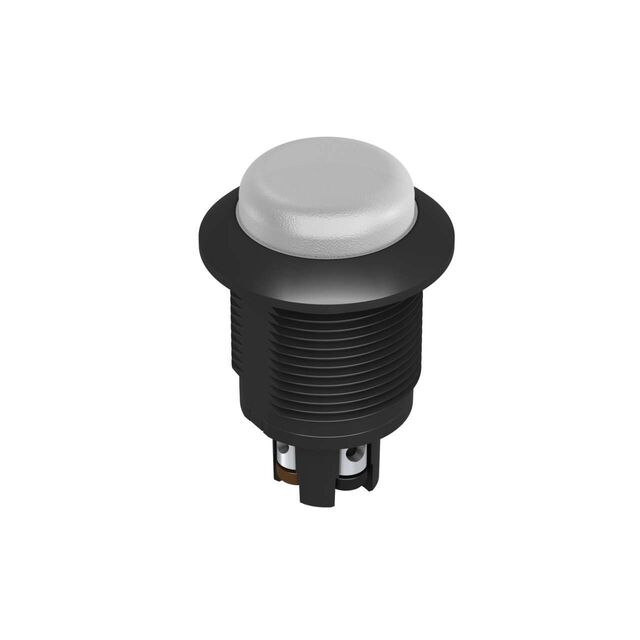

Specification	S18DLOXXPT

Current	25 mA
Ingress Protection	IP69K, IP67
Lamp Color	Orange
Lens Diameter	16 mm
Lens Style	Round, Flat Top
Ratings	DC
Termination Style	Screw Terminal
Type	LED
Voltage (Max)	30 V
Voltage (Min)	10 V
Wavelength - Peak	608 nm

S18DL Series

Part	Lamp Color	Ingress Protection	Current	Type	Wavelength - Peak	Lens Style	Ratings	Voltage (Max)	Voltage (Min)	Lens Diameter	Panel Cutout Shape	Millicandela Rating	Termination Style	Panel Cutout Dimension	Lens Transparency	Millicandela Rating Colors	Millicandela Rating (Green)	Millicandela Rating (Red)	Millicandela Rating (Yellow)	Wavelength - Peak Colors	Wavelength - Peak (Red)	Wavelength - Peak (Blue)
BANNER ENGINEERING S18DLRXXP	Red	IP67 IP69K	25 mA	LED	625 nm	Flat Top Round	DC	30 V	10 V	16 mm
BANNER ENGINEERING S18DLGXXPT	Green	IP67 IP69K NEMA 4X	25 mA	LED		Flat Top Round	DC	30 V	10 V		Round	2.3 mcd	Screw Terminal	0.71 "	Clear
BANNER ENGINEERING S18DLGRXPQ	Green Red	IP67 IP69K NEMA 4X	25 mA	LED		Flat Top Round	DC	30 V	10 V		Round		Quick Connect	0.709 "	Diffused	Green Red	2.3 mcd	1.4 mcd
BANNER ENGINEERING S18DLGRYPQ	Green Red Yellow	IP67 IP69K NEMA 4X	25 mA	LED		Flat Top Round	DC	30 V	10 V		Round		Quick Connect	0.709 "	Diffused	Green Red Yellow	2.3 mcd	1.4 mcd	1.2 mcd
BANNER ENGINEERING S18DLOXXPQ	Orange	IP67 IP69K	25 mA	LED	608 nm	Flat Top Round	DC	30 V	10 V	16 mm
BANNER ENGINEERING S18DLGRYPT	Green Red Yellow	IP67 IP69K NEMA 4X	25 mA	LED		Flat Top Round	DC	30 V	10 V		Round		Screw Terminal	0.71 "	Clear	Green Red Yellow	2.3 mcd	1.4 mcd	1.2 mcd
BANNER ENGINEERING S18DLWXXPT	White	IP67 IP69K	25 mA	LED		Flat Top Round	DC	30 V	10 V	16 mm			Screw Terminal
BANNER ENGINEERING S18DLRBWPT	Blue Red White	IP67 IP69K	25 mA	LED		Flat Top Round	DC	30 V	10 V	16 mm			Screw Terminal							Blue Red	625 nm	470 nm
BANNER ENGINEERING S18DLGRYP	Green Red Yellow	IP67 IP69K NEMA 4X	25 mA	LED		Flat Top Round	DC	30 V	10 V		Round		Wire Leads	0.709 "	Diffused	Green Red Yellow	2.3 mcd	1.4 mcd	1.2 mcd
BANNER ENGINEERING S18DLWXXP	White	IP67 IP69K	25 mA	LED		Flat Top Round	DC	30 V	10 V	16 mm
