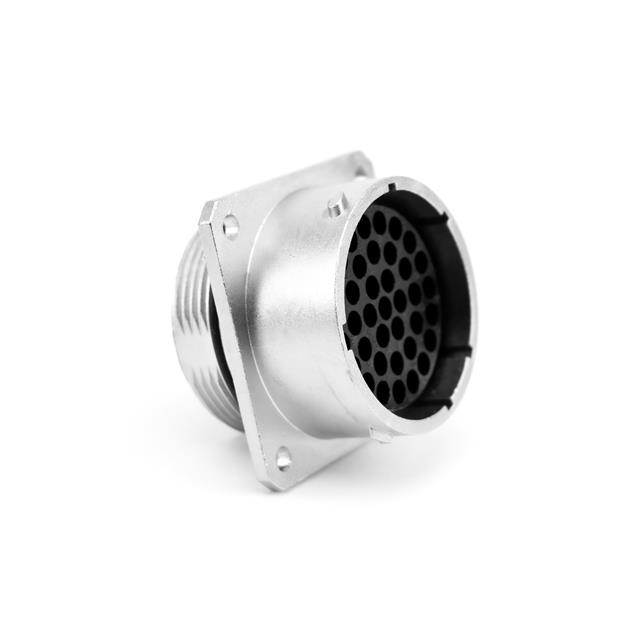

RT002238SNH

Active

Amphenol Sine Systems Corp

WALL MTG RECPT, SOCKET

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

WALL MTG RECPT, SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	RT002238SNH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	38
Shell Size - Insert [Min]	22
Shielding	Shielded
Type	For Female Sockets

Part	Shell Finish	Note	Housing Color	Shell Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Type	Ingress Protection	Material Flammability Rating	Contact Shape	Orientation	Connector Type	Mounting Feature	Fastening Type	Shielding	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol Sine Systems Corp RT002238SNH-K
Amphenol Sine Systems Corp RT002238PNH-K
Amphenol Sine Systems Corp RT002238SNH	Nickel	Contacts Not Included	Silver	Zinc Alloy	22	38	For Female Sockets	IP67 - Dust Tight Waterproof	UL94 V-0	Circular	N	Receptacle Housing	Flange	Bayonet Lock	Shielded	Crimp	-40 °C	105 ░C
Amphenol Sine Systems Corp RT002238PNH03	Nickel	Contacts Not Included	Silver	Zinc Alloy	22	38	For Male Pins	IP67 - Dust Tight Waterproof	UL94 V-0	Circular	N	Receptacle Housing	Flange	Bayonet Lock	Shielded	Crimp	-40 °C	125 °C
Amphenol Sine Systems Corp RT002238PNH	Nickel	Contacts Not Included	Silver	Zinc Alloy	22	38	For Male Pins	IP67 - Dust Tight Waterproof	UL94 V-0	Circular	N	Receptacle Housing	Flange	Bayonet Lock	Shielded	Crimp	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 15.23

General part information

Position Circular Connector Receptacle Housing Panel Mount
