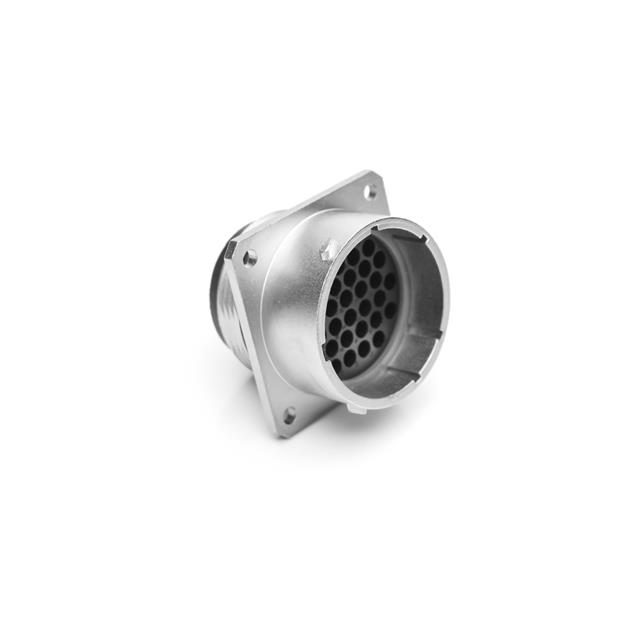

RT002238PNH
ActiveAmphenol Sine Systems Corp
WALL MTG RECPT, PIN
Deep-Dive with AI
Search across all available documentation for this part.
RT002238PNH
ActiveAmphenol Sine Systems Corp
WALL MTG RECPT, PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT002238PNH |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert [Max] | 38 |
| Shell Size - Insert [Min] | 22 |
| Shielding | Shielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 22.05 | |
| 10 | $ 16.99 | |||
| 25 | $ 15.38 | |||
| 50 | $ 14.29 | |||
| 100 | $ 13.30 | |||
| 250 | $ 12.14 | |||
| 500 | $ 11.36 | |||
Description
General part information
RT002238 Series
Position Circular Connector Receptacle Housing Panel Mount
Documents
Technical documentation and resources
