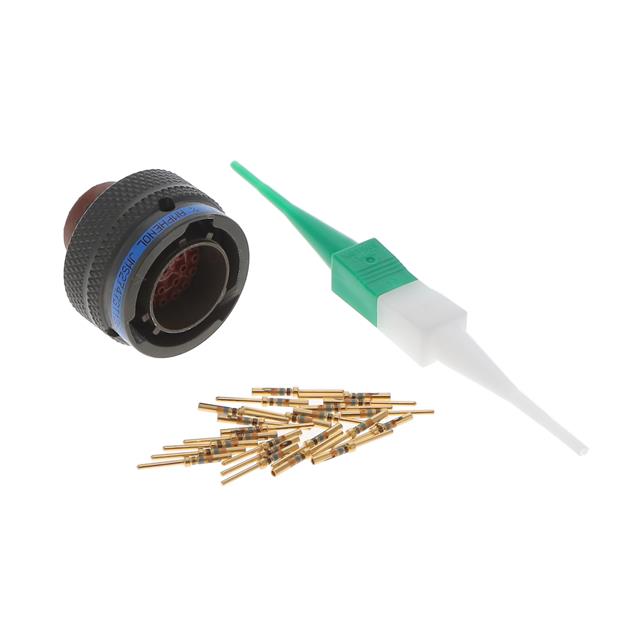

MS27473T12B35P
ActiveAmphenol Aerospace Operations
CONN PLUG MALE 22POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS27473T12B35P |
|---|---|
| Applications | Military, Aviation |
| Color | Olive Drab |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Plastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 22 positions |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series II |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] [diameter] | 35 |
| Shell Size - Insert [Min] [diameter] | 12 |
| Shielding | Unshielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 49.32 | |
| 10 | $ 42.74 | |||
| 25 | $ 37.71 | |||
| 50 | $ 33.74 | |||
| 100 | $ 29.59 | |||
| Bulk | 1 | $ 183.45 | ||
| 10 | $ 170.00 | |||
| 25 | $ 163.88 | |||
| 50 | $ 162.66 | |||
Description
General part information
MS27473T12B Series
22 Position Circular Connector Plug, Male Pins Crimp
