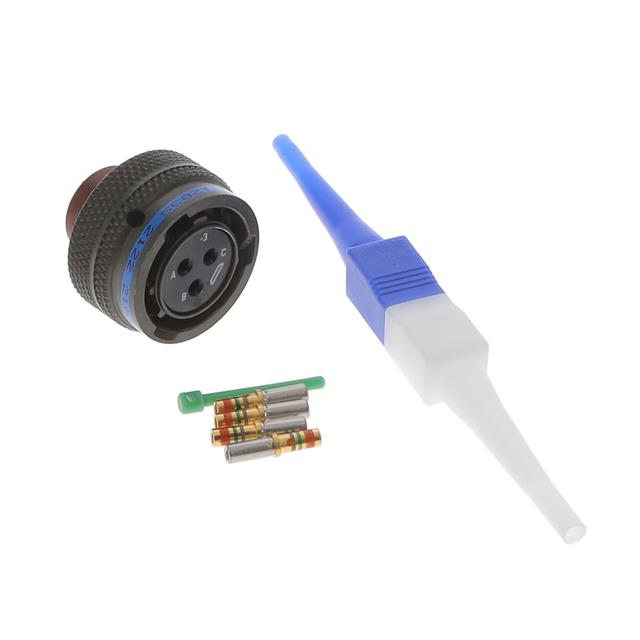

MS27473T12B3S

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MS27473T12B3S

Applications	Military, Aviation
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series II
Shell Material	Aluminum
Shell Size - Insert	12-3
Shielding	Unshielded
Termination	Crimp

Part	Ingress Protection	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Shielding	Fastening Type	Mounting Type	Termination	Shell Size - Insert	Orientation	Color	Contact Material	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Grade	Shell Material	Qualification	Primary Material	Applications	Insert Material	Number of Positions	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]
Amphenol Aerospace Operations MS27473T12B3S	Environment Resistant	Coupling Nut	-65 ░C	200 °C	Gold	Unshielded	Bayonet Lock	Free Hanging (In-Line)	Crimp	12-3	N	Olive Drab	Copper Alloy	Female Sockets Plug	1.27 µm	50 µin	Military	Aluminum	MIL-DTL-38999 Series II	Metal	Aviation Military
Amphenol Aerospace Operations MS27473T12B35P	Environment Resistant	Coupling Nut	-65 ░C	347 °F	Gold	Unshielded	Bayonet Lock	Free Hanging (In-Line)	Crimp		N	Olive Drab	Copper Alloy	Male Pins Plug	1.27 µm	50 µin	Military	Aluminum	MIL-DTL-38999 Series II	Metal	Aviation Military	Plastic	22 positions	35	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Crimp
