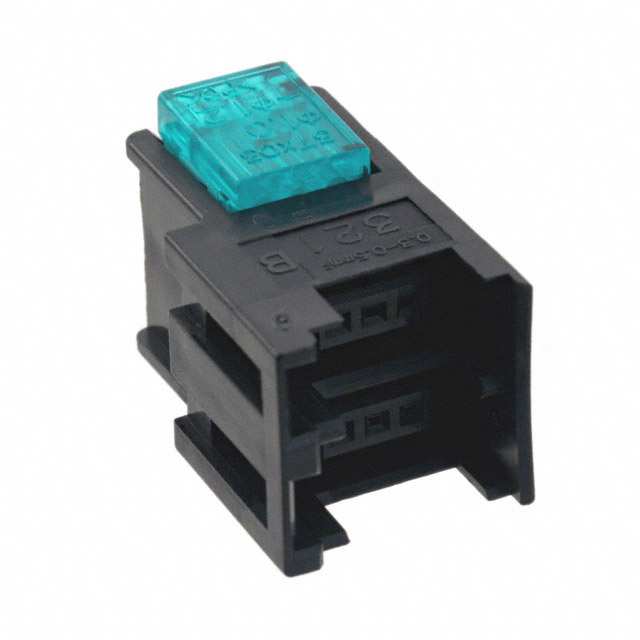

37306-2124-0W0 FL

Active

3M (TC)

CONN RCPT 6POS IDC 20-22AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

37306-2124-0W0 FL

Active

3M (TC)

CONN RCPT 6POS IDC 20-22AWG GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	37306-2124-0W0 FL

Cable Termination	IDC
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Type	Female Socket
Features	Closed End
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	6.5 mm
Row Spacing	0.256 in
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	20 AWG
Wire Type	Discrete

37306 Series

Part	Wire Gauge [Min]	Wire Gauge [Max]	Color	Number of Positions	Contact Type	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Number of Rows	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Connector Type	Contact Finish	Features	Mounting Type	Fastening Type
3M (TC) 37306-2124-0W0 FL	20 AWG	22 AWG	Black	6	Female Socket	IDC	8 çin	0.203 çm	Discrete	2	0.079 in	2 mm	6.5 mm	0.256 in	Receptacle	Gold	Closed End	Free Hanging (In-Line)
3M (TC) 37306-2206-0W0 FL	20 AWG	22 AWG	Black	6	Female Socket	IDC	8 çin	0.203 çm	Discrete	2	0.079 in	2 mm	6.5 mm	0.256 in	Receptacle	Gold	Closed End	Free Hanging (In-Line)
3M (TC) 37306-3101-0W0 FL	24 AWG	26 AWG	Black	6	Female Socket	IDC	8 çin	0.203 çm	Discrete	2	0.079 in	2 mm	6.5 mm	0.256 in	Receptacle	Gold	Closed End	Free Hanging (In-Line)
3M (TC) 37306-3101-0M0 FL	24 AWG	26 AWG	Black	6	Female Socket	IDC	8 çin	0.203 çm	Discrete	2	0.079 in	2 mm			Socket	Gold	Closed End	Panel Mount Snap-In	Latch Holder
3M (TC) 37306-3122-0M0 FL	24 AWG	26 AWG	Black	6	Female Socket	IDC	8 çin	0.203 çm	Discrete	2	0.079 in	2 mm			Socket	Gold	Closed End	Panel Mount Snap-In	Latch Holder
3M (TC) 37306-2124-0M0 FL	20 AWG	22 AWG	Black	6	Female Socket	IDC	8 çin	0.203 çm	Discrete	2	0.079 in	2 mm			Socket	Gold	Closed End	Panel Mount Snap-In	Latch Holder
3M (TC) 37306-3163-0M0 FL	24 AWG	26 AWG	Black	6	Female Socket	IDC	8 çin	0.203 çm	Discrete	2	0.079 in	2 mm			Socket	Gold	Closed End	Panel Mount Snap-In	Latch Holder
3M (TC) 37306-2165-0W0 FL	20 AWG	22 AWG	Black	6	Female Socket	IDC	8 çin	0.203 çm	Discrete	2	0.079 in	2 mm	6.5 mm	0.256 in	Receptacle	Gold	Closed End	Free Hanging (In-Line)
3M (TC) 37306-2165-0M0 FL	20 AWG	22 AWG	Black	6	Female Socket	IDC	8 çin	0.203 çm	Discrete	2	0.079 in	2 mm			Socket	Gold	Closed End	Panel Mount Snap-In	Latch Holder
3M (TC) 37306-3163-0W0 FL	24 AWG	26 AWG	Black	6	Female Socket	IDC	8 çin	0.203 çm	Discrete	2	0.079 in	2 mm	6.5 mm	0.256 in	Receptacle	Gold	Closed End	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 4.54

Description

General part information

37306 Series

6 Position Rectangular Receptacle Connector IDC Gold 20-22 AWG
