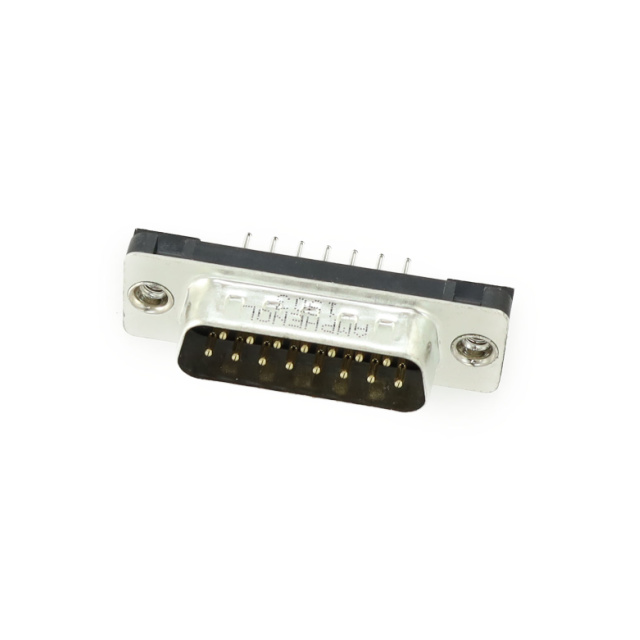

Specification	L717TSAH15POL2

Connector Layout	A, DA
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Finish	Tin Plated
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	2
Termination	Solder
Voltage Rating	600 V

L717TSAH15 Series

Part	Finish	Shell Material	Number of Rows	Current Rating	Mounting Type	Features	Flange Feature	Material Flammability Rating	Contact Type	Termination	Number of Positions	Connector Style	Connector Type	Shell Size	Connector Layout	Contact Finish	Contact Finish Thickness	Voltage Rating	Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Contact Form	Contact Finish Thickness (string set options)	Contact Finish Thickness
Amphenol ICC (Commercial Products) L717TSAH15POL2RM8C309	Tin Plated	Steel	2	5 A	Through Hole	Board Lock Grounding Indents	Female Screwlock (4-40) Mating Side	UL94 V-0	Signal	Solder	15	D-Sub	Male Pins Plug	2	A DA	Gold	30 µin	600 V	Copper Alloy	125 °C	-55 °C	Glass Filled Thermoplastic	Stamped
Amphenol ICC (Commercial Products) L717TSAH15POL2	Tin Plated	Steel	2	3 A	Through Hole	Grounding Indents	Board Side (4-40)	UL94 V-0	Signal	Solder	15	D-Sub	Male Pins Plug	2	A DA	Gold	0	600 V	Copper Alloy	125 °C	-55 °C	Glass Filled Thermoplastic	Stamped	Flash	Flash
Amphenol ICC (Commercial Products) L717TSAH15POL2RM5C309	Tin Plated	Steel	2	5 A	Through Hole	Board Lock Grounding Indents	Board Side (4-40)	UL94 V-0	Signal	Solder	15	D-Sub	Male Pins Plug	2	A DA	Gold	30 µin	600 V	Copper Alloy	125 °C	-55 °C	Glass Filled Thermoplastic	Stamped
Amphenol ICC (Commercial Products) L717TSAH15POL2RM5	Tin Plated	Steel	2	5 A	Through Hole	Board Lock Grounding Indents	Board Side (4-40)	UL94 V-0	Signal	Solder	15	D-Sub	Male Pins Plug	2	A DA	Gold	0	600 V	Copper Alloy	125 °C	-55 °C	Glass Filled Thermoplastic	Stamped	Flash	Flash
