L717TSAH15POL2RM8C309

Active

Amphenol ICC (Commercial Products)

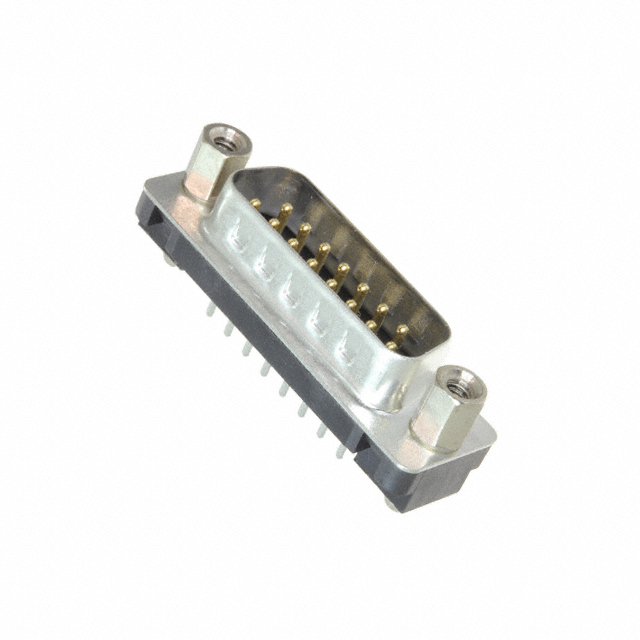

CONN D-SUB PLUG 15POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 15POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	L717TSAH15POL2RM8C309

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	600 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Features	Current Rating (Amps)	Voltage Rating	Contact Form	Termination	Connector Style	Contact Type	Number of Positions	Mounting Type	Connector Type	Material Flammability Rating	Flange Feature	Contact Material	Dielectric Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Shell Size, Connector Layout	Contact Finish Thickness
Amphenol ICC (Commercial Products) L717TSAH15POL2RM8C309	-55 °C	125 °C	2	Board Lock Grounding Indents	5 A	600 V	Stamped	Solder	D-Sub	Signal	15	Through Hole	Male Pins Plug	UL94 V-0	Female Screwlock (4-40) Mating Side	Copper Alloy	Thermoplastic Glass Filled	0.76 Ám	30 Áin	Gold	2
Amphenol ICC (Commercial Products) L717TSAH15POL2	-55 °C	125 °C	2	Grounding Indents	3 A	600 V	Stamped	Solder	D-Sub	Signal	15	Through Hole	Male Pins Plug	UL94 V-0	4-40 Board Side	Copper Alloy	Thermoplastic Glass Filled			Gold	2	Flash
Amphenol ICC (Commercial Products) L717TSAH15POL2RM5C309	-55 °C	125 °C	2	Board Lock Grounding Indents	5 A	600 V	Stamped	Solder	D-Sub	Signal	15	Through Hole	Male Pins Plug	UL94 V-0	4-40 Board Side	Copper Alloy	Thermoplastic Glass Filled	0.76 Ám	30 Áin	Gold	2
Amphenol ICC (Commercial Products) L717TSAH15POL2RM5	-55 °C	125 °C	2	Board Lock Grounding Indents	5 A	600 V	Stamped	Solder	D-Sub	Signal	15	Through Hole	Male Pins Plug	UL94 V-0	4-40 Board Side	Copper Alloy	Thermoplastic Glass Filled			Gold	2	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Plug, Male Pins Connector
