ADS1292IRSMR

Active

Texas Instruments

24-BIT, 2-CH, LOW-POWER ANALOG FRONT END (AFE) FOR ECG APPLICATIONS

Find alt

Alpha

ADS1292IRSMR

Active

Texas Instruments

24-BIT, 2-CH, LOW-POWER ANALOG FRONT END (AFE) FOR ECG APPLICATIONS

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

ADS1292 Series

The ADS1291, ADS1292, and ADS1292R are multichannel, simultaneous sampling, 24-bit, delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with a built-in programmable gain amplifier (PGA), internal reference, and an onboard oscillator.

The ADS1291, ADS1292, and ADS1292R incorporate all features commonly required in portable, low-power medical electrocardiogram (ECG), sports, and fitness applications.

With high levels of integration and exceptional performance, the ADS1291, ADS1292, and ADS1292R enable the creation of scalable medical instrumentation systems at significantly reduced size, power, and overall cost.

Technical Specifications

Parameters and characteristics for this part

Specification	ADS1292IRSMR

Mounting Type	Surface Mount
Number of Bits	24 bits
Number of Channels	2
Package / Case	32-VFQFN Exposed Pad
Package Length	4 mm
Package Name	32-VQFN
Package Width	4 mm
Power (Watts)	740 µW
Voltage - Supply, Analog (Max)	5.25 V
Voltage - Supply, Analog (Min)	2.7 V
Voltage - Supply, Digital (Max)	3.6 V
Voltage - Supply, Digital (Min)	1.7 V

ADS1292 Series

24-bit, 2-ch, Low-Power Analog Front END (AFE) for ECG Applications

Part	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Number of Channels	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Power (Watts)	Mounting Type	Package Width	Package Name	Package Length	Number of Bits	Package / Case	Supplied Contents	Type	Function	Secondary Attributes	Contents	Utilized IC / Part
Texas Instruments ADS1292IRSMT	3.6 V	1.7 V	2	5.25 V	2.7 V	740 µW	Surface Mount	4 mm	32-VQFN	4 mm	24 bits	32-VFQFN Exposed Pad
Texas Instruments ADS1292RIPBS	3.6 V	1.7 V	2	5.25 V	2.7 V	740 µW	Surface Mount	5 mm	32-TQFP	5 mm	24 bits	32-TQFP
Texas Instruments ADS1292RIRSMT	3.6 V	1.7 V	2	5.25 V	2.7 V	740 µW	Surface Mount	4 mm	32-VQFN	4 mm	24 bits	32-VFQFN Exposed Pad
Texas Instruments ADS1292RIRSMR	3.6 V	1.7 V	2	5.25 V	2.7 V	740 µW	Surface Mount	4 mm	32-VQFN	4 mm	24 bits	32-VFQFN Exposed Pad
Texas Instruments ADS1292RECG-FE													Board(s)	Interface	Analog Front End (AFE) for ECG EKG	SPI Interface(s)	Board	ADS1292R
Texas Instruments ADS1292RIPBSR	3.6 V	1.7 V	2	5.25 V	2.7 V	740 µW	Surface Mount	5 mm	32-TQFP	5 mm	24 bits	32-TQFP
Texas Instruments ADS1292IPBSR	3.6 V	1.7 V	2	5.25 V	2.7 V	740 µW	Surface Mount	5 mm	32-TQFP	5 mm	24 bits	32-TQFP
Texas Instruments ADS1292IPBS	3.6 V	1.7 V	2	5.25 V	2.7 V	740 µW	Surface Mount	5 mm	32-TQFP	5 mm	24 bits	32-TQFP

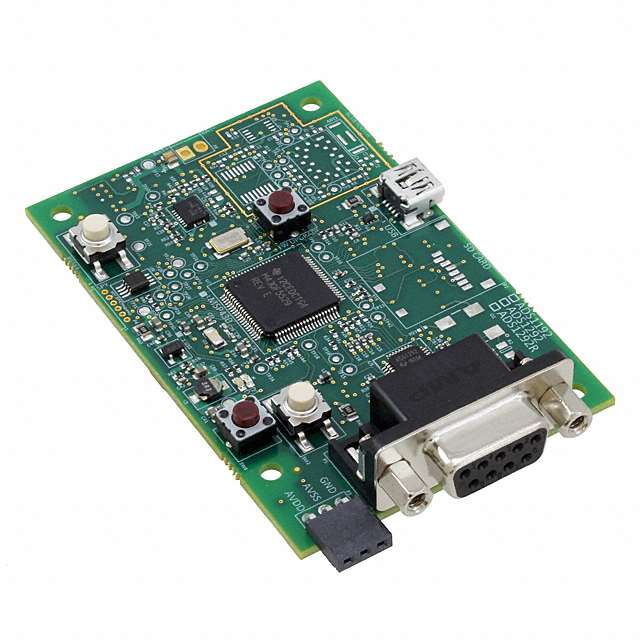

Texas Instruments ADS1292ECG-FE													Board(s)	Interface	Analog Front End (AFE) for ECG EKG	SPI Interface(s)	Board	ADS1292
Texas Instruments ADS1292IRSMR	3.6 V	1.7 V	2	5.25 V	2.7 V	740 µW	Surface Mount	4 mm	32-VQFN	4 mm	24 bits	32-VFQFN Exposed Pad
