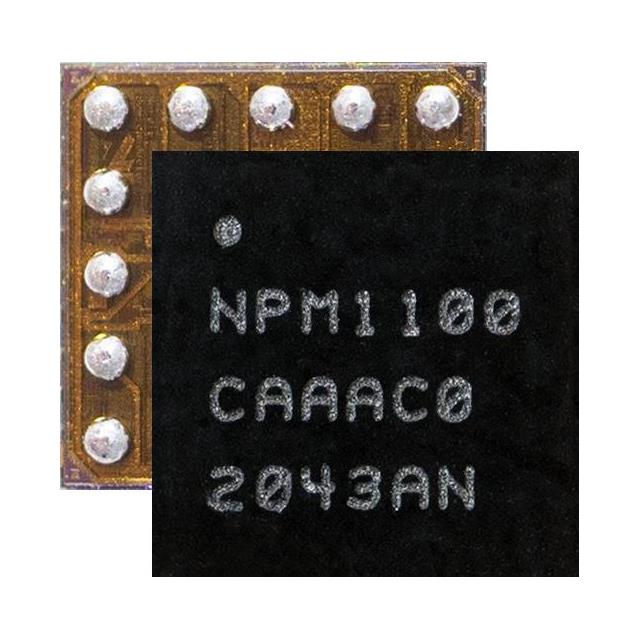

NPM1100-CAAA-E-R

Active

Nordic Semiconductor ASA

NPM1100 POWER MANAGEMENT IC

Search across all available documentation for this part.

DocumentsnPM1100

Active

Nordic Semiconductor ASA

NPM1100 POWER MANAGEMENT IC

DocumentsnPM1100

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NPM1100-CAAA-E-R	NPM1100 Series

Battery Chemistry	Lithium Ion/Polymer	Lithium Ion/Polymer
Contents	-	Board(s)
Embedded	-	False
Function	Battery Protection	Battery Charger, Battery Protection
Interface	USB	USB
Mounting Type	Surface Mount	Surface Mount
Number of Cells	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	25-UFBGA, WLCSP	25-UFBGA, WLCSP
Supplied Contents	-	Board(s)
Supplier Device Package	25-WLCSP (2.08x2.08)	25-WLCSP (2.08x2.08)
Type	-	Power Management
Utilized IC / Part	-	nPM1100

DEVKIT FOR POWER MANAGEMENT

Part	Function	Utilized IC / Part	Supplied Contents	Type	Number of Cells	Package / Case	Mounting Type	Supplier Device Package	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Battery Chemistry	Contents
Nordic Semiconductor ASA NPM1100-EK	Battery Charger	nPM1100	Board(s)	Power Management
Nordic Semiconductor ASA NPM1100-CAAA-E-R	Battery Protection				1	25-UFBGA, WLCSP	Surface Mount	25-WLCSP (2.08x2.08)	USB	85 °C	-40 °C	Lithium Ion/Polymer
Nordic Semiconductor ASA NPM1100-CAAA-E-R7	Battery Protection				1	25-UFBGA, WLCSP	Surface Mount	25-WLCSP (2.08x2.08)	USB	85 °C	-40 °C	Lithium Ion/Polymer
Nordic Semiconductor ASA NPM1100-EKHV	Battery Charger	nPM1100	Board(s)	Power Management									Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Battery Battery Protection IC Lithium Ion/Polymer 25-WLCSP (2.08x2.08)
