NPM1100-EKHV

Active

Nordic Semiconductor ASA

NPM1100 EVALUATION KIT SELECTABL

Search across all available documentation for this part.

Active

Nordic Semiconductor ASA

NPM1100 EVALUATION KIT SELECTABL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NPM1100-EKHV	NPM1100 Series

Battery Chemistry	-	Lithium Ion/Polymer
Contents	Board(s)	Board(s)
Embedded	False	False
Function	Battery Charger	Battery Charger, Battery Protection
Interface	-	USB
Mounting Type	-	Surface Mount
Number of Cells	-	1
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	25-UFBGA, WLCSP
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	25-WLCSP (2.08x2.08)
Type	Power Management	Power Management
Utilized IC / Part	nPM1100	nPM1100

DEVKIT FOR POWER MANAGEMENT

Part	Function	Utilized IC / Part	Supplied Contents	Type	Number of Cells	Package / Case	Mounting Type	Supplier Device Package	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Battery Chemistry	Contents
Nordic Semiconductor ASA NPM1100-EK	Battery Charger	nPM1100	Board(s)	Power Management
Nordic Semiconductor ASA NPM1100-CAAA-E-R	Battery Protection				1	25-UFBGA, WLCSP	Surface Mount	25-WLCSP (2.08x2.08)	USB	85 °C	-40 °C	Lithium Ion/Polymer
Nordic Semiconductor ASA NPM1100-CAAA-E-R7	Battery Protection				1	25-UFBGA, WLCSP	Surface Mount	25-WLCSP (2.08x2.08)	USB	85 °C	-40 °C	Lithium Ion/Polymer
Nordic Semiconductor ASA NPM1100-EKHV	Battery Charger	nPM1100	Board(s)	Power Management									Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 32.00

General part information

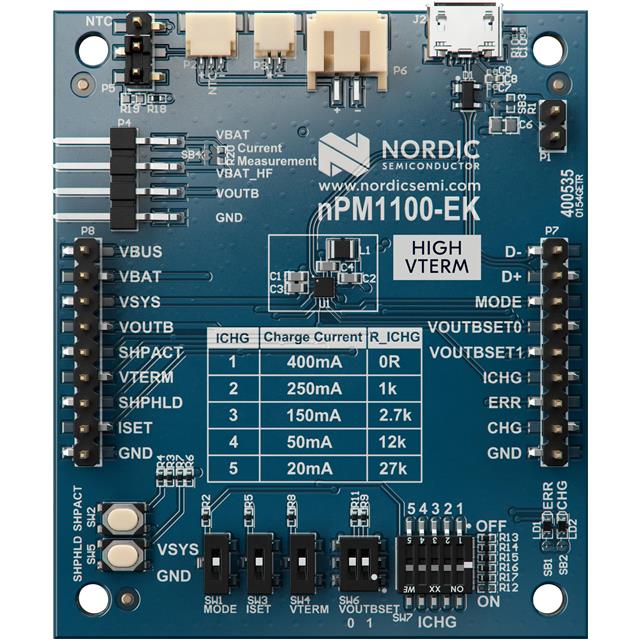

nPM1100 Battery Charger Power Management Evaluation Board

Technical documentation and resources

No documents available
