ASP0250804

Active

METZ CONNECT USA Inc.

SPRING CLAMP TERMINAL BLOCK, PLU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.41
		10	$ 4.88
		25	$ 4.57
		50	$ 4.07
		100	$ 3.98
		300	$ 3.67
		500	$ 3.31
		1000	$ 2.94

Description

General part information

ASP025 Series

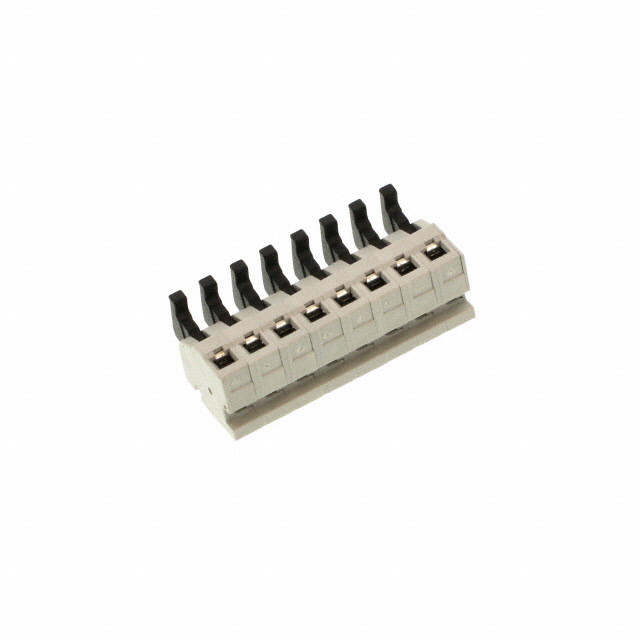

8 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Specification	ASP0250804	ASP025 Series

Color	Gray	Gray
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	8 A	8 A
Features	Lever Actuated	Lever Actuated
Housing Material	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6
Insulation Height	13.8 mm	13.8 mm
Insulation Height	0.543 in	0.543 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	8	2 - 24
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Plug Wire Entry	90 °	90 °
Positions Per Level	8	2 - 20
Termination Style	Screwless - Spring Cage, Tension Clamp	Screwless - Spring Cage, Tension Clamp
Type	Plug for Unshrouded Header	Plug for Unshrouded Header
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	28 AWG	28 AWG
Wire Gauge or Range - AWG [Min]	16 AWG	16 AWG
Wire Gauge or Range - mm² [Max]	1.5 mm²	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.08 mm²	0.08 mm²
