ASP0250204

Active

METZ CONNECT USA Inc.

SPRING CLAMP TERMINAL BLOCK, PLU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ASP0250204	ASP025 Series

Color	Gray	Gray
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	8 A	8 A
Features	Lever Actuated	Lever Actuated
Housing Material	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6
Insulation Height	13.8 mm	13.8 mm
Insulation Height	0.543 in	0.543 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	2	2 - 24
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Plug Wire Entry	90 °	90 °
Positions Per Level	2	2 - 20
Termination Style	Screwless - Spring Cage, Tension Clamp	Screwless - Spring Cage, Tension Clamp
Type	Plug for Unshrouded Header	Plug for Unshrouded Header
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	28 AWG	28 AWG
Wire Gauge or Range - AWG [Min]	16 AWG	16 AWG
Wire Gauge or Range - mm² [Max]	1.5 mm²	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.08 mm²	0.08 mm²

ASP025 Series

SPRING CLAMP TERMINAL BLOCK, PLU

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current - UL	Number of Positions	Contact Material	Material Flammability Rating	Type	Number of Levels	Mounting Type	Positions Per Level	Plug Wire Entry	Pitch [x]	Pitch [x]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - UL	Color	Housing Material	Insulation Height	Insulation Height	Termination Style	Contact Mating Finish
METZ CONNECT USA Inc. ASP0252004	28 AWG	16 AWG	Lever Actuated	-40 °C	105 ░C	8 A	20	Copper Alloy	UL94 V-0	Plug for Unshrouded Header	1	Free Hanging (In-Line)	20	90 °	5 mm	0.197 in	1.5 mm²	0.08 mm²	300 V	Gray	Polyamide (PA46), Nylon 4/6	13.8 mm	0.543 in	Screwless - Spring Cage, Tension Clamp	Tin
METZ CONNECT USA Inc. ASP0251204	28 AWG	16 AWG	Lever Actuated	-40 °C	105 ░C	8 A	12	Copper Alloy	UL94 V-0	Plug for Unshrouded Header	1	Free Hanging (In-Line)	12	90 °	5 mm	0.197 in	1.5 mm²	0.08 mm²	300 V	Gray	Polyamide (PA46), Nylon 4/6	13.8 mm	0.543 in	Screwless - Spring Cage, Tension Clamp	Tin
METZ CONNECT USA Inc. ASP0250404	28 AWG	16 AWG	Lever Actuated	-40 °C	105 ░C	8 A	4	Copper Alloy	UL94 V-0	Plug for Unshrouded Header	1	Free Hanging (In-Line)	4	90 °	5 mm	0.197 in	1.5 mm²	0.08 mm²	300 V	Gray	Polyamide (PA46), Nylon 4/6	13.8 mm	0.543 in	Screwless - Spring Cage, Tension Clamp	Tin
METZ CONNECT USA Inc. ASP0252404	28 AWG	16 AWG	Lever Actuated	-40 °C	105 ░C	8 A	24	Copper Alloy	UL94 V-0	Plug for Unshrouded Header	1	Free Hanging (In-Line)		90 °	5 mm	0.197 in	1.5 mm²	0.08 mm²	300 V	Gray	Polyamide (PA46), Nylon 4/6	13.8 mm	0.543 in	Screwless - Spring Cage, Tension Clamp	Tin
METZ CONNECT USA Inc. ASP0250604	28 AWG	16 AWG	Lever Actuated	-40 °C	105 ░C	8 A	6	Copper Alloy	UL94 V-0	Plug for Unshrouded Header	1	Free Hanging (In-Line)	6	90 °	5 mm	0.197 in	1.5 mm²	0.08 mm²	300 V	Gray	Polyamide (PA46), Nylon 4/6	13.8 mm	0.543 in	Screwless - Spring Cage, Tension Clamp	Tin
METZ CONNECT USA Inc. ASP0250804	28 AWG	16 AWG	Lever Actuated	-40 °C	105 ░C	8 A	8	Copper Alloy	UL94 V-0	Plug for Unshrouded Header	1	Free Hanging (In-Line)	8	90 °	5 mm	0.197 in	1.5 mm²	0.08 mm²	300 V	Gray	Polyamide (PA46), Nylon 4/6	13.8 mm	0.543 in	Screwless - Spring Cage, Tension Clamp	Tin
METZ CONNECT USA Inc. ASP0250704	28 AWG	16 AWG	Lever Actuated	-40 °C	105 ░C	8 A	7	Copper Alloy	UL94 V-0	Plug for Unshrouded Header	1	Free Hanging (In-Line)	7	90 °	5 mm	0.197 in	1.5 mm²	0.08 mm²	300 V	Gray	Polyamide (PA46), Nylon 4/6	13.8 mm	0.543 in	Screwless - Spring Cage, Tension Clamp	Tin
METZ CONNECT USA Inc. ASP0250904	28 AWG	16 AWG	Lever Actuated	-40 °C	105 ░C	8 A	9	Copper Alloy	UL94 V-0	Plug for Unshrouded Header	1	Free Hanging (In-Line)	9	90 °	5 mm	0.197 in	1.5 mm²	0.08 mm²	300 V	Gray	Polyamide (PA46), Nylon 4/6	13.8 mm	0.543 in	Screwless - Spring Cage, Tension Clamp	Tin
METZ CONNECT USA Inc. ASP0250504	28 AWG	16 AWG	Lever Actuated	-40 °C	105 ░C	8 A		Copper Alloy	UL94 V-0	Plug for Unshrouded Header	1	Free Hanging (In-Line)	5	90 °	5 mm	0.197 in	1.5 mm²	0.08 mm²	300 V	Gray	Polyamide (PA46), Nylon 4/6	13.8 mm	0.543 in	Screwless - Spring Cage, Tension Clamp	Tin
METZ CONNECT USA Inc. ASP0250204	28 AWG	16 AWG	Lever Actuated	-40 °C	105 ░C	8 A	2	Copper Alloy	UL94 V-0	Plug for Unshrouded Header	1	Free Hanging (In-Line)	2	90 °	5 mm	0.197 in	1.5 mm²	0.08 mm²	300 V	Gray	Polyamide (PA46), Nylon 4/6	13.8 mm	0.543 in	Screwless - Spring Cage, Tension Clamp	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.89
		10	$ 1.43
		500	$ 0.93
		1000	$ 0.84
		5000	$ 0.74
		10000	$ 0.73

Description

General part information

ASP025 Series

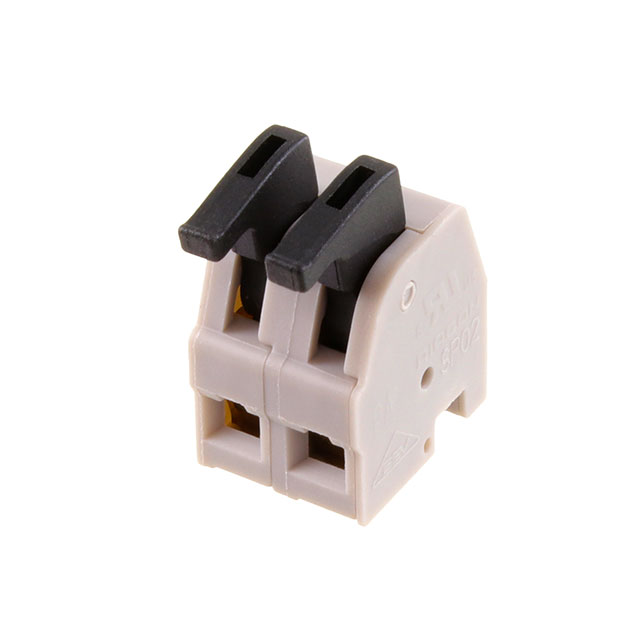

2 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line)
