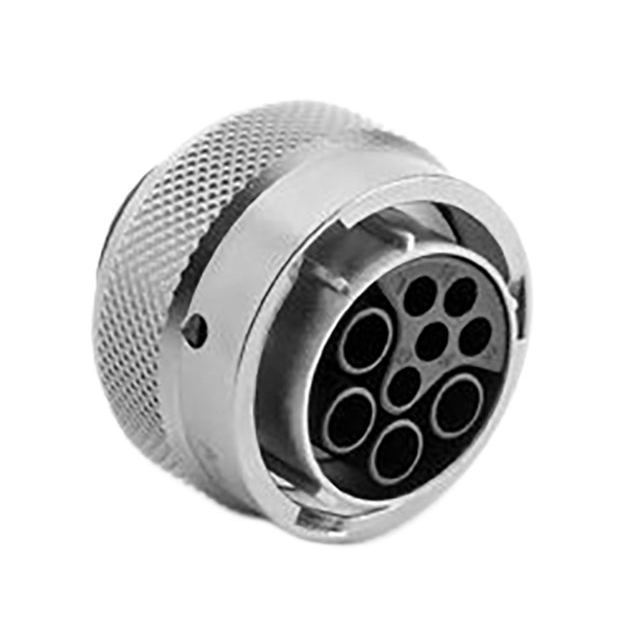

RT061609SNH

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG FMALE 9POS INLINE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG FMALE 9POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	RT061609SNH

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	2.5 mm, 16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Type	For Female Sockets

Part	Shell Finish	Ingress Protection	Features	Shielding	Contact Shape	Contact Type	Shell Material	Mounting Type	Number of Positions	Type	Note	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Connector Type	Primary Material	Insert Material	Contact Size	Material Flammability Rating	Housing Color
Amphenol Sine Systems Corp RT061609SNHEC03	Nickel	IP67 - Dust Tight Waterproof	Coupling Nut	Shielded	Circular	Crimp	Zinc Alloy	Free Hanging (In-Line)	9	For Female Sockets	Contacts Not Included	Bayonet Lock	125 °C	-40 °C	N	Plug Housing	Metal	Thermoplastic	2.5 mm 16	UL94 V-0	Silver
Amphenol Sine Systems Corp RT061609PNH	Nickel	IP67 - Dust Tight Waterproof	Coupling Nut	Shielded	Circular	Crimp	Zinc Alloy	Free Hanging (In-Line)	9	For Male Pins	Contacts Not Included	Bayonet Lock	105 ░C	-40 °C	N	Plug Housing		Thermoplastic	2.5 mm 16	UL94 V-0	Silver
Amphenol Sine Systems Corp RT061609SNH	Nickel	IP67 - Dust Tight Waterproof	Coupling Nut		Circular	Crimp	Zinc Alloy	Free Hanging (In-Line)	9	For Female Sockets	Contacts Not Included	Bayonet Lock	105 ░C	-40 °C	N	Plug Housing		Thermoplastic	2.5 mm 16	UL94 V-0	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 16.50

General part information

9 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
