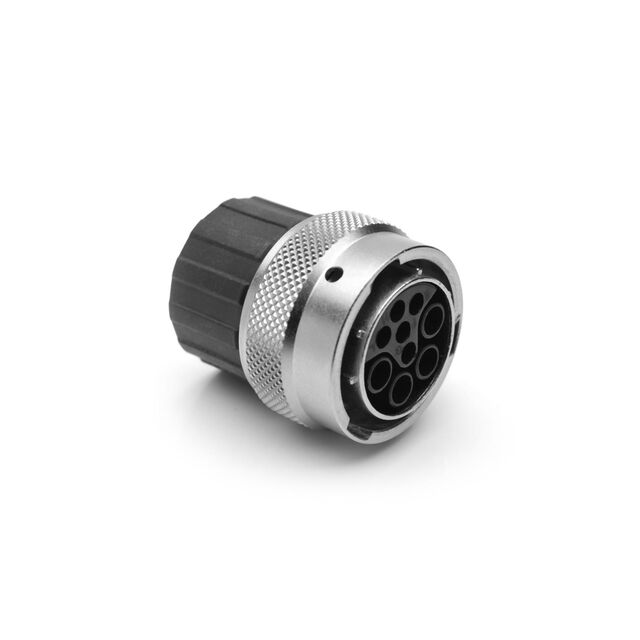

RT061609SNHEC03
ActiveAmphenol Sine Systems Corp
PLUG, 9 (4+5) POSITION, FEMALE,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT061609SNHEC03
ActiveAmphenol Sine Systems Corp
PLUG, 9 (4+5) POSITION, FEMALE,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT061609SNHEC03 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 2.5 mm, 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 9 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shielding | Shielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 35.73 | |
| 10 | $ 27.61 | |||
| 25 | $ 25.03 | |||
| 50 | $ 23.28 | |||
| 100 | $ 21.71 | |||
| 250 | $ 19.85 | |||
| 500 | $ 18.60 | |||
Description
General part information
RT061609 Series
9 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
