Technical Specifications
Parameters and characteristics for this part
| Specification | STL4P3LLH6 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 4 A |
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 6 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 639 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |

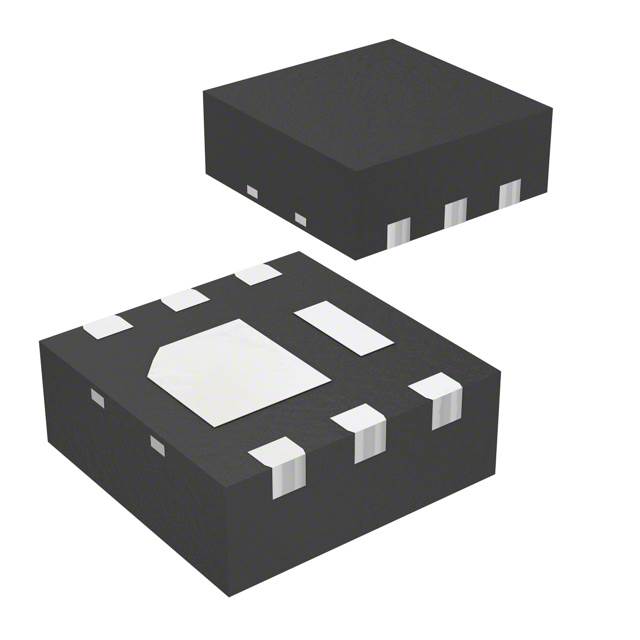

| Package / Case | 6-PowerWDFN |
| Power Dissipation (Max) | 2.4 W |
| Rds On (Max) @ Id, Vgs | 56 mOhm |
| Supplier Device Package | PowerFlat™ (2x2) |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.72 | |
| 10 | $ 0.51 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.72 | ||
| 10 | $ 0.51 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.24 | |||
| Tape & Reel (TR) | 3000 | $ 0.19 | ||
| 6000 | $ 0.18 | |||
| 9000 | $ 0.17 | |||
| 15000 | $ 0.17 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.76 | |
| 10 | $ 0.57 | |||
| 25 | $ 0.52 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.33 | |||
Description
General part information
STL4P3LLH6 Series
This device is a P-channel Power MOSFET developed using the STripFET H6 technology with a new trench gate structure. The resulting Power MOSFET exhibits very low RDS(on)in all packages.
