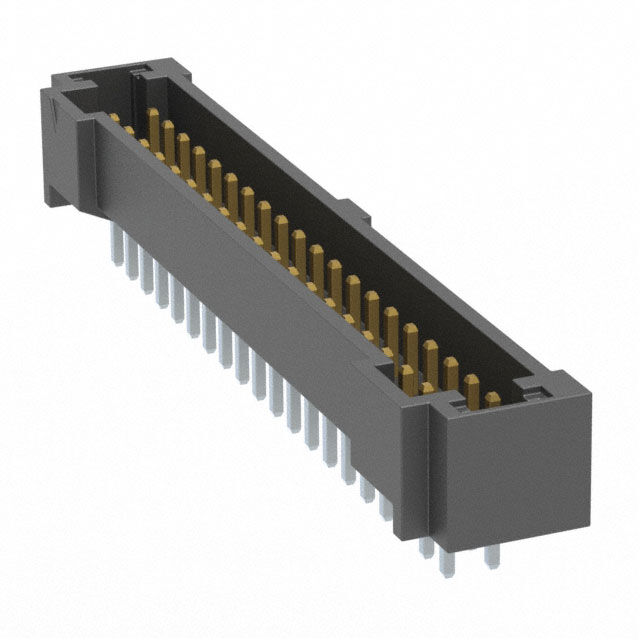

T2M-120-01-L-D-TH

Active

Samtec Inc.

CONN HEADER VERT 40POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT2M Series Other Related Documents 03 High Reliability Tiger Eye™ Discrete Wire Header, 2.00 mm Pitch +2

T2M-120-01-L-D-TH

Active

Samtec Inc.

CONN HEADER VERT 40POS 2MM

Deep-Dive with AI

DocumentsT2M Series Other Related Documents 03 High Reliability Tiger Eye™ Discrete Wire Header, 2.00 mm Pitch +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T2M-120-01-L-D-TH

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.117 in
Contact Length - Post	2.97 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.8 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.8 mm
Insulation Height	0.228 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.302 in
Overall Contact Length	7.67 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

T2M-120 Series

Headers & Wire Housings High Reliability Tiger Eye Discrete Wire Header, 2.00 mm Pitch

Part	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Insulation Material	Contact Material	Contact Finish - Post	Termination	Style	Number of Positions	Shrouding	Fastening Type	Insulation Color	Number of Rows	Insulation Height	Insulation Height	Mounting Type	Connector Type	Features	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]
Samtec Inc. T2M-120-01-L-D-SM	3.8 A	0.079 in	2 mm	Gold	-55 °C	125 °C	All	0.079 in	2 mm	Male Pin	10 çin	0.25 çm	Square	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Tin	Solder	Board to Board Cable	40	Shrouded - 4 Wall	Push-Pull	Black	2	5.8 mm	0.228 in	Surface Mount	Header
Samtec Inc. T2M-104-01-L-D-SM-WT	3.8 A	0.079 in	2 mm	Gold	-55 °C	125 °C	All	0.079 in	2 mm	Male Pin	10 çin	0.25 çm	Square	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Tin	Solder	Board to Board Cable	8	Shrouded - 4 Wall	Push-Pull	Black	2	5.8 mm	0.228 in	Surface Mount	Header	Solder Retention
Samtec Inc. T2M-120-01-L-D-SM-WT-K	3.8 A	0.079 in	2 mm	Gold	-55 °C	125 °C	All	0.079 in	2 mm	Male Pin	10 çin	0.25 çm	Square	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Tin	Solder	Board to Board Cable	40	Shrouded - 4 Wall	Push-Pull	Black	2	5.8 mm	0.228 in	Surface Mount	Header	Pick and Place Solder Retention
Samtec Inc. T2M-120-01-L-D-SM-WT-K-TR	3.8 A	0.079 in	2 mm	Gold	-55 °C	125 °C	All	0.079 in	2 mm	Male Pin	10 çin	0.25 çm	Square	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Tin	Solder	Board to Board Cable	40	Shrouded - 4 Wall	Push-Pull	Black	2	5.8 mm	0.228 in	Surface Mount	Header	Pick and Place Solder Retention
Samtec Inc. T2M-120-01-L-D-TH	3.8 A	0.079 in	2 mm	Gold	-55 °C	125 °C	All	0.079 in	2 mm	Male Pin	10 çin	0.25 çm	Square	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Tin	Solder	Board to Board Cable	40	Shrouded - 4 Wall	Push-Pull	Black	2	5.8 mm	0.228 in	Through Hole	Header		0.117 in	2.97 mm	0.302 in	7.67 mm
Samtec Inc. T2M-120-01-S-D-TH-DS	3.8 A	0.079 in	2 mm	Gold	-55 °C	125 °C	All	0.079 in	2 mm	Male Pin	30 Áin	0.76 Ám	Square	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Tin	Solder	Board to Board Cable	40	Shrouded - 4 Wall	Push-Pull	Black	2	5.8 mm	0.228 in	Through Hole	Header	Mating Flange	0.117 in	2.97 mm	0.302 in	7.67 mm
Samtec Inc. T2M-120-01-S-D-SM-WT-K	3.8 A	0.079 in	2 mm	Gold	-55 °C	125 °C	All	0.079 in	2 mm	Male Pin	30 Áin	0.76 Ám	Square	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Tin	Solder	Board to Board Cable	40	Shrouded - 4 Wall	Push-Pull	Black	2	5.8 mm	0.228 in	Surface Mount	Header	Pick and Place Solder Retention
Samtec Inc. T2M-120-01-L-D-SM-WT-TR	3.8 A	0.079 in	2 mm	Gold	-55 °C	125 °C	All	0.079 in	2 mm	Male Pin	10 çin	0.25 çm	Square	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Tin	Solder	Board to Board Cable	40	Shrouded - 4 Wall	Push-Pull	Black	2	5.8 mm	0.228 in	Surface Mount	Header	Solder Retention
Samtec Inc. T2M-120-01-S-D-RA	3.8 A	0.079 in	2 mm	Gold	-55 °C	125 °C	All	0.079 in	2 mm	Male Pin	30 Áin	0.76 Ám	Square	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Tin	Solder	Board to Board Cable	40	Shrouded - 4 Wall	Push-Pull	Black	2			Through Hole Right Angle	Header		0.09 "	2.29 mm			7.44 mm	0.293 in
Samtec Inc. T2M-120-01-L-D-RA-WT	3.8 A	0.079 in	2 mm	Gold	-55 °C	125 °C	All	0.079 in	2 mm	Male Pin	10 çin	0.25 çm	Square	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Tin	Solder	Board to Board Cable	40	Shrouded - 4 Wall	Push-Pull	Black	2			Through Hole Right Angle	Header	Solder Retention	0.09 "	2.29 mm			7.44 mm	0.293 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.85
		10	$ 7.26
		25	$ 6.86
		50	$ 6.61
		100	$ 6.16

Description

General part information

T2M-120 Series

Headers & Wire Housings High Reliability Tiger Eye Discrete Wire Header, 2.00 mm Pitch
