FN9289-4-100
ActiveTE Connectivity Raychem Cable Protection
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FN9289-4-100
ActiveTE Connectivity Raychem Cable Protection
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN9289-4-100 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, CQC, CSA, ENEC |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Filter | 4 A |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 28.8 mm |
| Panel Cutout Dimensions [y] | 47.1 mm |
| Panel Thickness [Max] | 2.5 mm |
| Panel Thickness [Max] | 0.098 in |
| Panel Thickness [Min] | 1 mm |
| Panel Thickness [Min] | 0.039 in |
| Switch Features | Switch On-Off |
| Termination | Spring-Cage |
FN9289 Series
| Part | Material Flammability Rating | Switch Features | Current Rating - Filter | Approval Agency | Accomodates a Fuse | Mounting Type | Fuse Holder, Drawer | Ingress Protection | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Termination | Termination | Termination | Connector Type | Filter Type | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | UL94 V-2 | Switch On-Off | 10 A | CQC CSA ENEC UR | Panel Mount Snap-In | Fuse Holder Twin Fused | IP40 | 47.8 mm | 28.8 mm | 0.25 in | 6.3 mm | Quick Connect | Receptacle Male Blades - Module | Filtered (EMI RFI) - Commercial Medical | 2.5 mm | 1 mm | 0.098 in | 0.039 in | IEC 320-C14 | |
TE Connectivity Raychem Cable Protection | UL94 V-2 | Switch On-Off | 6 A | CQC CSA ENEC UR | Panel Mount Snap-In | Fuse Holder Twin Fused | IP40 | 47.8 mm | 28.8 mm | 0.25 in | 6.3 mm | Quick Connect | Receptacle Male Blades - Module | Filtered (EMI RFI) - Commercial Medical | 2.5 mm | 1 mm | 0.098 in | 0.039 in | IEC 320-C14 | |
TE Connectivity Raychem Cable Protection | UL94 V-2 | Switch On-Off | 6 A | CQC CSA ENEC UR | Panel Mount Snap-In | Fuse Holder Twin Fused | IP40 | 47.8 mm | 28.8 mm | 0.25 in | 6.3 mm | Quick Connect | Receptacle Male Blades - Module | Filtered (EMI RFI) - Commercial Medical | 2.5 mm | 1 mm | 0.098 in | 0.039 in | IEC 320-C14 | |
TE Connectivity Raychem Cable Protection | UL94 V-2 | Switch On-Off | 10 A | CQC CSA ENEC UL | Panel Mount Snap-In | Fuse Holder Twin Fused | IP40 | 47.1 mm | 28.8 mm | 0.25 in | 6.3 mm | Quick Connect | Receptacle Male Blades - Module | Filtered (EMI RFI) - Commercial | 2.5 mm | 1 mm | 0.098 in | 0.039 in | IEC 320-C14 | |
TE Connectivity Raychem Cable Protection | UL94 V-2 | Switch On-Off | 4 A | CQC CSA ENEC UL | Panel Mount Snap-In | Fuse Holder Twin Fused | IP40 | 47.1 mm | 28.8 mm | Spring-Cage | Receptacle Male Blades - Module | Filtered (EMI RFI) - Commercial | 2.5 mm | 1 mm | 0.098 in | 0.039 in | IEC 320-C14 | |||
TE Connectivity Raychem Cable Protection | UL94 V-2 | Switch On-Off | 4 A | CQC CSA ENEC UR | Panel Mount Snap-In | Fuse Holder Twin Fused | IP40 | 47.8 mm | 28.8 mm | 0.25 in | 6.3 mm | Quick Connect | Receptacle Male Blades - Module | Filtered (EMI RFI) - Commercial Medical | 2.5 mm | 1 mm | 0.098 in | 0.039 in | IEC 320-C14 | |
TE Connectivity Raychem Cable Protection | UL94 V-2 | Switch On-Off | 2 A | CQC CSA ENEC UR | Panel Mount Snap-In | Fuse Holder Twin Fused | IP40 | 47.8 mm | 28.8 mm | 0.25 in | 6.3 mm | Quick Connect | Receptacle Male Blades - Module | Filtered (EMI RFI) - Commercial Medical | 2.5 mm | 1 mm | 0.098 in | 0.039 in | IEC 320-C14 | |
TE Connectivity Raychem Cable Protection | UL94 V-2 | Switch On-Off | 2 A | CQC CSA ENEC UR | Panel Mount Snap-In | Fuse Holder Twin Fused | IP40 | 47.8 mm | 28.8 mm | 0.25 in | 6.3 mm | Quick Connect | Receptacle Male Blades - Module | Filtered (EMI RFI) - Commercial Medical | 2.5 mm | 1 mm | 0.098 in | 0.039 in | IEC 320-C14 | |
TE Connectivity Raychem Cable Protection | UL94 V-2 | Switch On-Off | 2 A | CQC CSA ENEC UL | Panel Mount Snap-In | Fuse Holder Twin Fused | IP40 | 47.1 mm | 28.8 mm | Spring-Cage | Receptacle Male Blades - Module | Filtered (EMI RFI) - Commercial | 2.5 mm | 1 mm | 0.098 in | 0.039 in | IEC 320-C14 | |||
TE Connectivity Raychem Cable Protection | UL94 V-2 | Switch On-Off | 2 A | CQC CSA ENEC UL | Panel Mount Snap-In | Fuse Holder Twin Fused | IP40 | 47.1 mm | 28.8 mm | 0.25 in | 6.3 mm | Quick Connect | Receptacle Male Blades - Module | Filtered (EMI RFI) - Commercial | 2.5 mm | 1 mm | 0.098 in | 0.039 in | IEC 320-C14 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 38.30 | |
| 10 | $ 33.54 | |||
| 40 | $ 31.06 | |||
| 80 | $ 30.02 | |||
| 280 | $ 28.37 | |||
Description
General part information
FN9289 Series

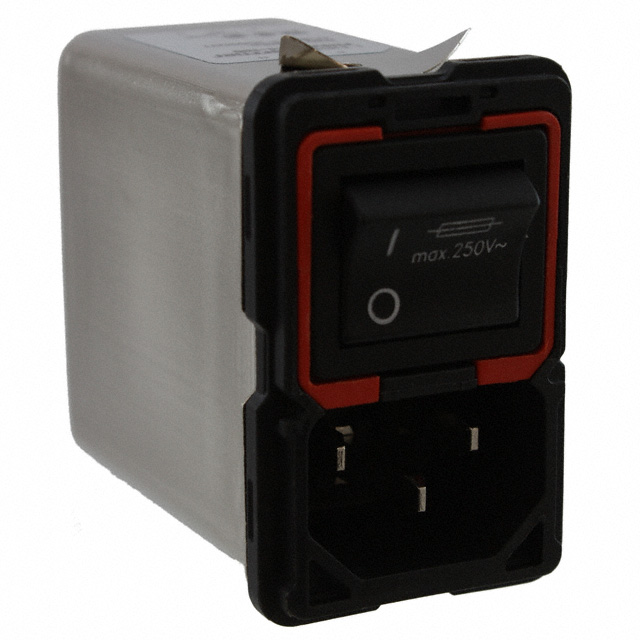

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
