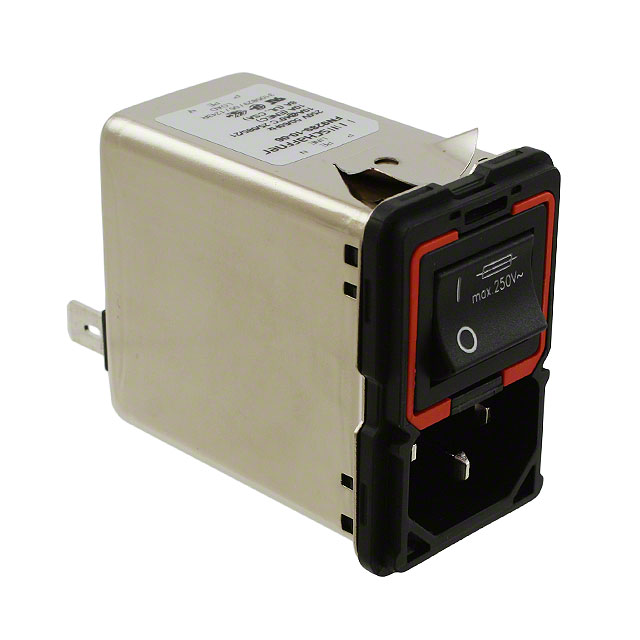

FN9289-10-06

Active

TE Connectivity Raychem Cable Protection

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN9289-10-06

Active

TE Connectivity Raychem Cable Protection

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN9289-10-06

Accomodates a Fuse	True
Approval Agency	UL, CQC, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Filter	10 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	28.8 mm
Panel Cutout Dimensions [y]	47.1 mm
Panel Thickness [Max]	2.5 mm
Panel Thickness [Max]	0.098 in
Panel Thickness [Min]	1 mm
Panel Thickness [Min]	0.039 in
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

FN9289 Series

Part	Material Flammability Rating	Switch Features	Current Rating - Filter	Approval Agency	Mounting Type	Fuse Holder, Drawer	Ingress Protection	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Termination	Termination	Connector Type	Filter Type	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Connector Style
TE Connectivity Raychem Cable Protection FN9289E-10-06	UL94 V-2	Switch On-Off	10 A	CQC CSA ENEC UR	Panel Mount Snap-In	Fuse Holder Twin Fused	IP40	47.8 mm	28.8 mm	0.25 in	6.3 mm	Quick Connect	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	2.5 mm	1 mm	0.098 in	0.039 in	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9289EB-6-06	UL94 V-2	Switch On-Off	6 A	CQC CSA ENEC UR	Panel Mount Snap-In	Fuse Holder Twin Fused	IP40	47.8 mm	28.8 mm	0.25 in	6.3 mm	Quick Connect	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	2.5 mm	1 mm	0.098 in	0.039 in	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9289E-6-06	UL94 V-2	Switch On-Off	6 A	CQC CSA ENEC UR	Panel Mount Snap-In	Fuse Holder Twin Fused	IP40	47.8 mm	28.8 mm	0.25 in	6.3 mm	Quick Connect	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	2.5 mm	1 mm	0.098 in	0.039 in	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9289-10-06	UL94 V-2	Switch On-Off	10 A	CQC CSA ENEC UL	Panel Mount Snap-In	Fuse Holder Twin Fused	IP40	47.1 mm	28.8 mm	0.25 in	6.3 mm	Quick Connect	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	2.5 mm	1 mm	0.098 in	0.039 in	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9289-4-100	UL94 V-2	Switch On-Off	4 A	CQC CSA ENEC UL	Panel Mount Snap-In	Fuse Holder Twin Fused	IP40	47.1 mm	28.8 mm			Spring-Cage	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	2.5 mm	1 mm	0.098 in	0.039 in	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9289EB-4-06	UL94 V-2	Switch On-Off	4 A	CQC CSA ENEC UR	Panel Mount Snap-In	Fuse Holder Twin Fused	IP40	47.8 mm	28.8 mm	0.25 in	6.3 mm	Quick Connect	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	2.5 mm	1 mm	0.098 in	0.039 in	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9289E-2-06	UL94 V-2	Switch On-Off	2 A	CQC CSA ENEC UR	Panel Mount Snap-In	Fuse Holder Twin Fused	IP40	47.8 mm	28.8 mm	0.25 in	6.3 mm	Quick Connect	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	2.5 mm	1 mm	0.098 in	0.039 in	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9289B-2-06	UL94 V-2	Switch On-Off	2 A	CQC CSA ENEC UR	Panel Mount Snap-In	Fuse Holder Twin Fused	IP40	47.8 mm	28.8 mm	0.25 in	6.3 mm	Quick Connect	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	2.5 mm	1 mm	0.098 in	0.039 in	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9289-2-100	UL94 V-2	Switch On-Off	2 A	CQC CSA ENEC UL	Panel Mount Snap-In	Fuse Holder Twin Fused	IP40	47.1 mm	28.8 mm			Spring-Cage	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	2.5 mm	1 mm	0.098 in	0.039 in	IEC 320-C14
TE Connectivity Raychem Cable Protection FN9289-2-06	UL94 V-2	Switch On-Off	2 A	CQC CSA ENEC UL	Panel Mount Snap-In	Fuse Holder Twin Fused	IP40	47.1 mm	28.8 mm	0.25 in	6.3 mm	Quick Connect	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	2.5 mm	1 mm	0.098 in	0.039 in	IEC 320-C14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 37.45
		10	$ 31.83
		40	$ 28.86
		80	$ 27.49
		120	$ 26.71
		280	$ 25.17

Description

General part information

FN9289 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
