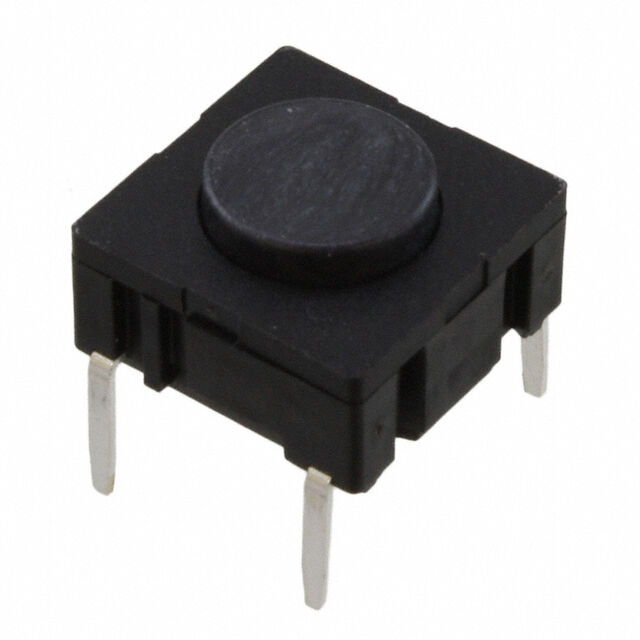

TL6200ABF300QP

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

TL6200ABF300QP

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TL6200ABF300QP	TL6200 Series

Actuator Height off PCB, Vertical	-	9.5 - 10.4 mm
Actuator Height off PCB, Vertical [z]	6.4 mm	6.4 - 8 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Round Button	Round Button
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC	0.05 - 24 A
Features	Black Cap	Black Cap, White Cap
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Through Hole	Through Hole, Surface Mount
Operating Force	300 gf	300 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	10.1 mm	10.1 mm
Outline [y]	10.1 mm	10.1 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	1 mm	1 mm
Termination Style	PC Pin	PC Pin, Gull Wing

TL6200 Series

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Contact Rating @ Voltage	Mechanical Life	Termination Style	Switch Function	Circuit	Ingress Protection	Operating Force	Actuator Orientation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Actuator Type	Switch Travel	Actuator Height off PCB, Vertical [z]	Outline [x]	Outline [y]	Features	Actuator Height off PCB, Vertical
E-Switch TL6200BBF300QP	0.05 A, 24 VDC	10000000 Cycles	PC Pin	Off-Mom	SPST-NO	IP67 - Dust Tight, Waterproof	300 gf	Top Actuated	Through Hole	85 °C	-40 °C	Non-Illuminated	Round Button	1 mm	8 mm	10.1 mm	10.1 mm
E-Switch TL6200ABF300QG	0.05 A, 24 VDC	10000000 Cycles	Gull Wing	Off-Mom	SPST-NO	IP67 - Dust Tight, Waterproof	300 gf	Top Actuated	Surface Mount	85 °C	-40 °C	Non-Illuminated	Round Button	1 mm	6.4 mm	10.1 mm	10.1 mm	Black Cap
E-Switch TL6200DBF300QG	0.05 A, 24 VDC	10000000 Cycles	Gull Wing	Off-Mom	SPST-NO	IP67 - Dust Tight, Waterproof	300 gf	Top Actuated	Surface Mount	85 °C	-40 °C	Non-Illuminated	Round Button	1 mm		10.1 mm	10.1 mm		10.4 mm
E-Switch TL6200CBF300QP	0.05 A, 24 VDC	10000000 Cycles	PC Pin	Off-Mom	SPST-NO	IP67 - Dust Tight, Waterproof	300 gf	Top Actuated	Through Hole	85 °C	-40 °C	Non-Illuminated	Round Button	1 mm		10.1 mm	10.1 mm		9.5 mm
E-Switch TL6200CBF300QG	0.05 A, 24 VDC	10000000 Cycles	Gull Wing	Off-Mom	SPST-NO	IP67 - Dust Tight, Waterproof	300 gf	Top Actuated	Surface Mount	85 °C	-40 °C	Non-Illuminated	Round Button	1 mm		10.1 mm	10.1 mm	Black Cap	9.5 mm
E-Switch TL6200AWF300QG	0.05 A, 24 VDC	10000000 Cycles	Gull Wing	Off-Mom	SPST-NO	IP67 - Dust Tight, Waterproof	300 gf	Top Actuated	Surface Mount	85 °C	-40 °C	Non-Illuminated	Round Button	1 mm	6.4 mm	10.1 mm	10.1 mm	White Cap
E-Switch TL6200BBF300QG	0.05 A, 24 VDC	10000000 Cycles	Gull Wing	Off-Mom	SPST-NO	IP67 - Dust Tight, Waterproof	300 gf	Top Actuated	Surface Mount	85 °C	-40 °C	Non-Illuminated	Round Button	1 mm	8 mm	10.1 mm	10.1 mm	Black Cap
E-Switch TL6200ABF300QP	0.05 A, 24 VDC	10000000 Cycles	PC Pin	Off-Mom	SPST-NO	IP67 - Dust Tight, Waterproof	300 gf	Top Actuated	Through Hole	85 °C	-40 °C	Non-Illuminated	Round Button	1 mm	6.4 mm	10.1 mm	10.1 mm	Black Cap

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	540	$ 3.08

Description

General part information

TL6200 Series

Tactile Switch SPST-NO Top Actuated Through Hole
