TL6200AWF300QG

Active

E-Switch

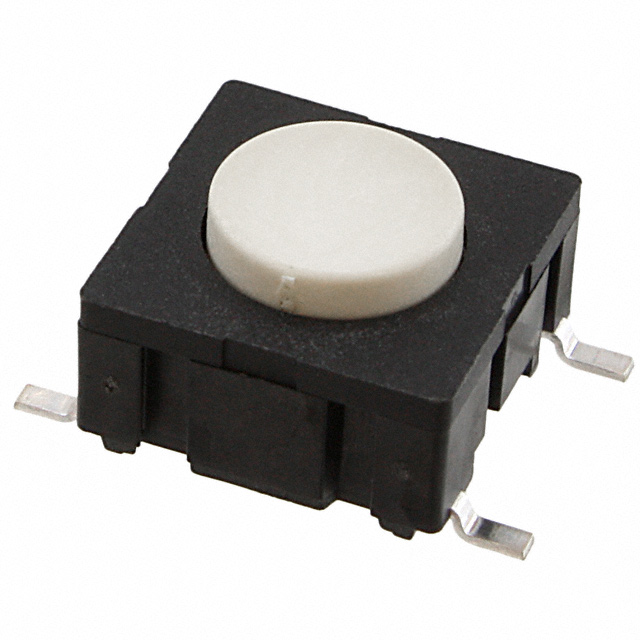

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

TL6200AWF300QG

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.80
	Digi-Reel®	1	$ 4.80
	Tape & Reel (TR)	650	$ 3.09

Description

General part information

TL6200 Series

Tactile Switch SPST-NO Top Actuated Surface Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TL6200AWF300QG	TL6200 Series

Actuator Height off PCB, Vertical	-	9.5 - 10.4 mm
Actuator Height off PCB, Vertical [z]	6.4 mm	6.4 - 8 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Round Button	Round Button
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC	0.05 - 24 A
Features	White Cap	Black Cap, White Cap
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Surface Mount	Through Hole, Surface Mount
Operating Force	300 gf	300 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	10.1 mm	10.1 mm
Outline [y]	10.1 mm	10.1 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	1 mm	1 mm
Termination Style	Gull Wing	PC Pin, Gull Wing

TL6200 Series

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Contact Rating @ Voltage	Mechanical Life	Termination Style	Switch Function	Circuit	Ingress Protection	Operating Force	Actuator Orientation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Actuator Type	Switch Travel	Actuator Height off PCB, Vertical [z]	Outline [x]	Outline [y]	Features	Actuator Height off PCB, Vertical
E-Switch TL6200BBF300QP	0.05 A, 24 VDC	10000000 Cycles	PC Pin	Off-Mom	SPST-NO	IP67 - Dust Tight, Waterproof	300 gf	Top Actuated	Through Hole	85 °C	-40 °C	Non-Illuminated	Round Button	1 mm	8 mm	10.1 mm	10.1 mm
E-Switch TL6200ABF300QG	0.05 A, 24 VDC	10000000 Cycles	Gull Wing	Off-Mom	SPST-NO	IP67 - Dust Tight, Waterproof	300 gf	Top Actuated	Surface Mount	85 °C	-40 °C	Non-Illuminated	Round Button	1 mm	6.4 mm	10.1 mm	10.1 mm	Black Cap
E-Switch TL6200DBF300QG	0.05 A, 24 VDC	10000000 Cycles	Gull Wing	Off-Mom	SPST-NO	IP67 - Dust Tight, Waterproof	300 gf	Top Actuated	Surface Mount	85 °C	-40 °C	Non-Illuminated	Round Button	1 mm		10.1 mm	10.1 mm		10.4 mm
E-Switch TL6200CBF300QP	0.05 A, 24 VDC	10000000 Cycles	PC Pin	Off-Mom	SPST-NO	IP67 - Dust Tight, Waterproof	300 gf	Top Actuated	Through Hole	85 °C	-40 °C	Non-Illuminated	Round Button	1 mm		10.1 mm	10.1 mm		9.5 mm
E-Switch TL6200CBF300QG	0.05 A, 24 VDC	10000000 Cycles	Gull Wing	Off-Mom	SPST-NO	IP67 - Dust Tight, Waterproof	300 gf	Top Actuated	Surface Mount	85 °C	-40 °C	Non-Illuminated	Round Button	1 mm		10.1 mm	10.1 mm	Black Cap	9.5 mm
E-Switch TL6200AWF300QG	0.05 A, 24 VDC	10000000 Cycles	Gull Wing	Off-Mom	SPST-NO	IP67 - Dust Tight, Waterproof	300 gf	Top Actuated	Surface Mount	85 °C	-40 °C	Non-Illuminated	Round Button	1 mm	6.4 mm	10.1 mm	10.1 mm	White Cap
E-Switch TL6200BBF300QG	0.05 A, 24 VDC	10000000 Cycles	Gull Wing	Off-Mom	SPST-NO	IP67 - Dust Tight, Waterproof	300 gf	Top Actuated	Surface Mount	85 °C	-40 °C	Non-Illuminated	Round Button	1 mm	8 mm	10.1 mm	10.1 mm	Black Cap
E-Switch TL6200ABF300QP	0.05 A, 24 VDC	10000000 Cycles	PC Pin	Off-Mom	SPST-NO	IP67 - Dust Tight, Waterproof	300 gf	Top Actuated	Through Hole	85 °C	-40 °C	Non-Illuminated	Round Button	1 mm	6.4 mm	10.1 mm	10.1 mm	Black Cap
