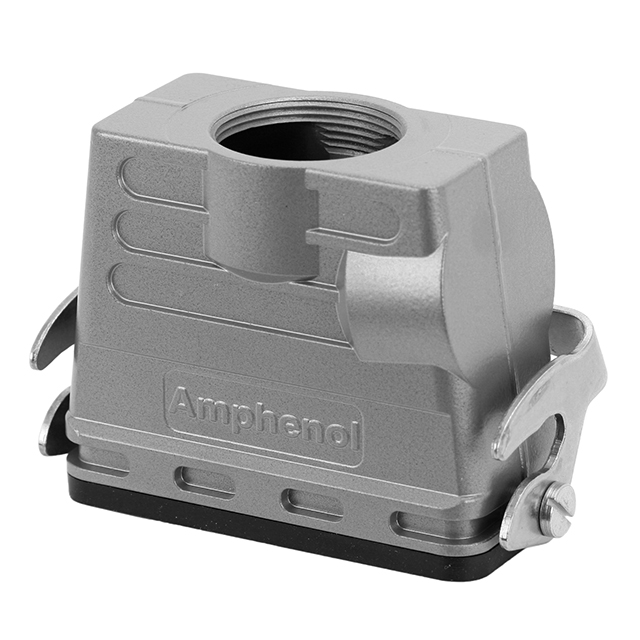

C14621R0248058

Active

Amphenol Tuchel Industrial

CONN HOOD CPLNG BOTTOM SZE24 M40

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C14621R0248058

Active

Amphenol Tuchel Industrial

CONN HOOD CPLNG BOTTOM SZE24 M40

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C14621R0248058

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood Top
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E24
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Bottom Entry

C14621R024 Series

Part	Lock Location	Size	Thread Size	Connector Type	Style	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Ingress Protection	Housing Material
Amphenol Tuchel Industrial C14621R0248541	Locking Clip (1) on Base Bottom	E24	M25	Hood - Coupling	Bottom Entry	Cable to Cable	100 °C	-40 °C	2.441 "	4.724 "	120 mm	1.693 in	62 mm	43 mm	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast
Amphenol Tuchel Industrial C14621R0245568	Locking Clip (1) on Base Bottom	E24	M25	Hood	Side Entry		100 °C	-40 °C	2.992 in	4.724 "	120 mm	1.693 in	76 mm	43 mm	IP65 - Dust Tight Water Resistant	Aluminum Die Cast
Amphenol Tuchel Industrial C14621R0248028	Locking Clip (2) on Hood Top	E24	M32	Hood - Coupling	Bottom Entry	Cable to Cable	100 °C	-40 °C	2.992 in	4.724 "	120 mm	1.693 in	76 mm	43 mm	IP65 - Dust Tight Water Resistant	Aluminum Die Cast
Amphenol Tuchel Industrial C14621R0246078	Locking Clip (1) on Base Bottom	E24		Hood	Top Entry		100 °C	-40 °C	2.992 in	4.724 "	120 mm	1.693 in	76 mm	43 mm	IP65 - Dust Tight Water Resistant	Aluminum Die Cast
Amphenol Tuchel Industrial C14621R0246501	Locking Clip (2) on Hood	E24	M25	Hood	Top Entry		100 °C	-40 °C	2.441 "	4.724 "	120 mm	1.693 in	62 mm	43 mm	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast
Amphenol Tuchel Industrial C14621R0248058	Locking Clip (1) on Hood Top	E24		Hood - Coupling	Bottom Entry	Cable to Cable	100 °C	-40 °C	2.992 in	4.724 "	120 mm	1.693 in	76 mm	43 mm	IP65 - Dust Tight Water Resistant	Aluminum Die Cast
Amphenol Tuchel Industrial C14621R0248038	Locking Clip (2) on Hood Top	E24		Hood - Coupling	Bottom Entry	Cable to Cable	100 °C	-40 °C	2.992 in	4.724 "	120 mm	1.693 in	76 mm	43 mm	IP65 - Dust Tight Water Resistant	Aluminum Die Cast
Amphenol Tuchel Industrial C14621R0246018	Locking Clip (2) on Base Bottom	E24		Hood	Top Entry		100 °C	-40 °C	2.992 in	4.724 "	120 mm	1.693 in	76 mm	43 mm	IP65 - Dust Tight Water Resistant	Aluminum Die Cast
Amphenol Tuchel Industrial C14621R0246568	Locking Clip (1) on Base Bottom	E24	M25	Hood	Top Entry		100 °C	-40 °C	2.992 in	4.724 "	120 mm	1.693 in	76 mm	43 mm	IP65 - Dust Tight Water Resistant	Aluminum Die Cast
Amphenol Tuchel Industrial C14621R0246508	Locking Clip (2) on Base Bottom	E24	M25	Hood	Top Entry		100 °C	-40 °C	2.992 in	4.724 "	120 mm	1.693 in	76 mm	43 mm	IP65 - Dust Tight Water Resistant	Aluminum Die Cast

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 36.01

Description

General part information

C14621R024 Series

Hood - Coupling Connector Bottom Entry M40 E24 IP65 - Dust Tight, Water Resistant
