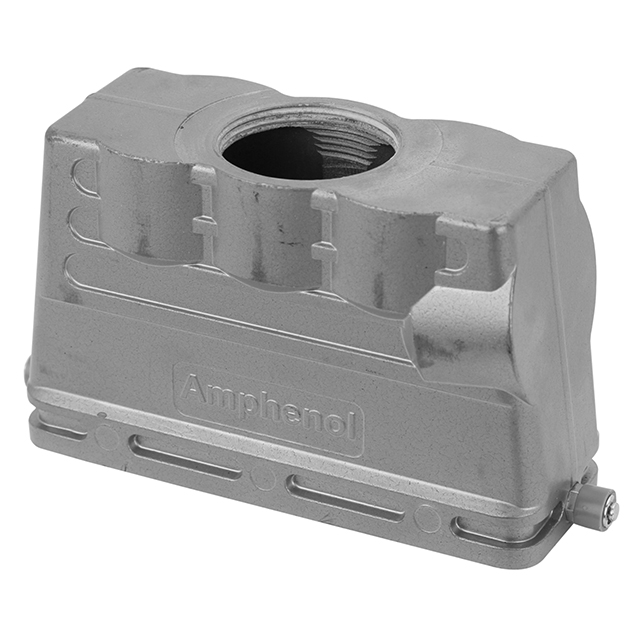

Specification	C14621R0246078

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Size	E24
Size / Dimension Height	2.992 in
Size / Dimension Length	4.724 in
Size / Dimension Width	1.693 in
Style	Top Entry
Thread Size	M40

C14621R024 Series

Part	Style	Connector Type	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Housing Material	Size	Lock Location	Ingress Protection IP Rating	Ingress Protection Description	Thread Size	Features	Operating Temperature (Max)	Operating Temperature (Min)
Amphenol Tuchel Industrial C14621R0248541	Bottom Entry Top or Bottom Entry	Hood - Coupling	2.441 in	1.693 in	4.724 in	Aluminum Alloy Die Cast	E24	Locking Clip (1) on Base Bottom	IP65	Dust Tight Water Resistant	M25	Cable Cable to Cable	100 °C	-40 °C
Amphenol Tuchel Industrial C14621R0245568	Side Entry	Hood	2.992 in	1.693 in	4.724 in	Aluminum Die Cast	E24	Locking Clip (1) on Base Bottom	IP65	Dust Tight Water Resistant	M25		100 °C	-40 °C
Amphenol Tuchel Industrial C14621R0248028	Bottom Entry Top or Bottom Entry	Hood - Coupling	2.992 in	1.693 in	4.724 in	Aluminum Die Cast	E24	Locking Clip (2) on Hood Top	IP65	Dust Tight Water Resistant	M32	Cable Cable to Cable	100 °C	-40 °C
Amphenol Tuchel Industrial C14621R0246078	Top Entry	Hood	2.992 in	1.693 in	4.724 in	Aluminum Die Cast	E24	Locking Clip (1) on Base Bottom	IP65	Dust Tight Water Resistant	M40		100 °C	-40 °C
Amphenol Tuchel Industrial C14621R0246501	Top Entry	Hood	2.441 in	1.693 in	4.724 in	Aluminum Alloy Die Cast	E24	Locking Clip (2) on Hood	IP65	Dust Tight Water Resistant	M25		100 °C	-40 °C
Amphenol Tuchel Industrial C14621R0248058	Bottom Entry Top or Bottom Entry	Hood - Coupling	2.992 in	1.693 in	4.724 in	Aluminum Die Cast	E24	Locking Clip (1) on Hood Top	IP65	Dust Tight Water Resistant	M40	Cable Cable to Cable	100 °C	-40 °C
Amphenol Tuchel Industrial C14621R0248038	Bottom Entry Top or Bottom Entry	Hood - Coupling	2.992 in	1.693 in	4.724 in	Aluminum Die Cast	E24	Locking Clip (2) on Hood Top	IP65	Dust Tight Water Resistant	M40	Cable Cable to Cable	100 °C	-40 °C
Amphenol Tuchel Industrial C14621R0246018	Top Entry	Hood	2.992 in	1.693 in	4.724 in	Aluminum Die Cast	E24	Locking Clip (2) on Base Bottom	IP65	Dust Tight Water Resistant	M40		100 °C	-40 °C
Amphenol Tuchel Industrial C14621R0245021	Side Entry	Hood	2.441 in	1.693 in	4.724 in	Aluminum Alloy Die Cast	E24	Locking Clip (2) on Hood	IP65	Dust Tight Water Resistant	M32		100 °C	-40 °C
Amphenol Tuchel Industrial C14621R0246568	Top Entry	Hood	2.992 in	1.693 in	4.724 in	Aluminum Die Cast	E24	Locking Clip (1) on Base Bottom	IP65	Dust Tight Water Resistant	M25		100 °C	-40 °C
