STEVAL-POEL45W1

Active

STMicroelectronics

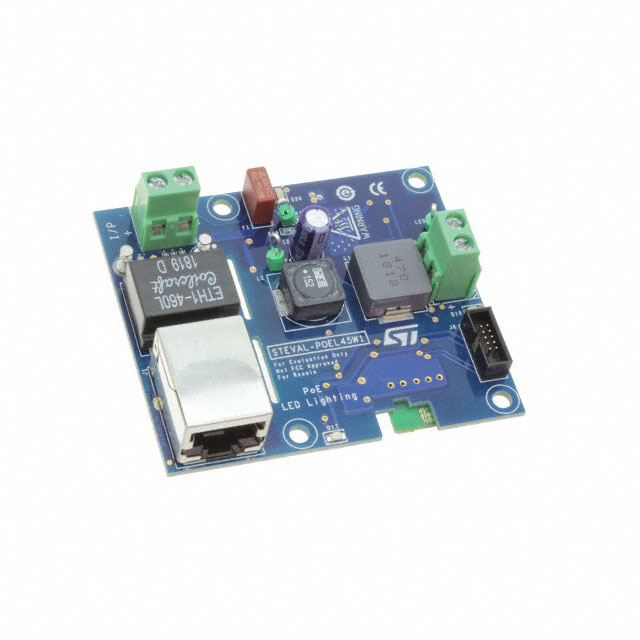

POWER OVER ETHERNET (POE) POWERED 45 W LED DRIVER WITH BLUETOOTH LOW ENERGY (BLE) ENABLED CONTROL REFERENCE DESIGN

Find alt

Alpha

STEVAL-POEL45W1

Active

STMicroelectronics

POWER OVER ETHERNET (POE) POWERED 45 W LED DRIVER WITH BLUETOOTH LOW ENERGY (BLE) ENABLED CONTROL REFERENCE DESIGN

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

STEVAL Series

The STEVAL-BFA001V1B is an industrial reference design kit designed for condition monitoring (CM) and predictive maintenance (PdM).

The hardware development kit consists of an industrial sensor board (STEVAL-IDP005V1), an adapter for the ST-LINK/V2-1 programming and debugging tool (STEVAL-UKI001V1), a 0.050" 10-pin flat cable, a 4-pole cable mount connector plug with male contacts and an M12 female connector with a 2 m cable.

The firmware package includes dedicated algorithms for advanced time and frequency domain signal processing and analysis of the 3D digital accelerometer with 3 kHz flat bandwidth. The package includes drivers for pressure, relative humidity and temperature sensor monitoring. Audio algorithms for acoustic emission (AE) are also part of the package.

Technical Specifications

Parameters and characteristics for this part

Specification	STEVAL-POEL45W1

Contents	Board
Current - Output / Channel	1.4 A
Features	Dimmable
Supplied Contents	Board(s)
Utilized IC / Part	SPBTLE-1S, PM8805, LED6000
Voltage - Input (Maximum)	57 V
Voltage - Input (Minimum)	37 V
