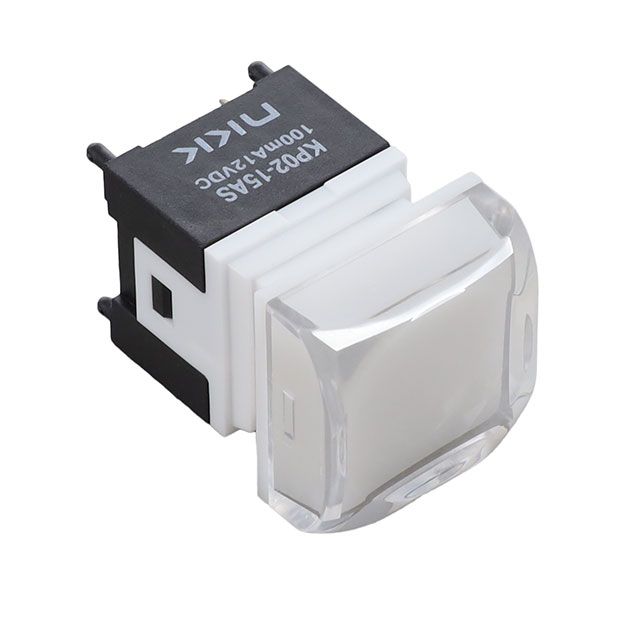

KP0215ASBKG03RGBP-3SJB

Active

NKK Switches

SWITCH PB MINI ILLUMINATED RGB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KP0215ASBKG03RGBP-3SJB

Active

NKK Switches

SWITCH PB MINI ILLUMINATED RGB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KP0215ASBKG03RGBP-3SJB

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPST-NO
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Electrical Life	5000000 Cycles
Features	Tactile/Audible Feedback
Illumination Type, Color	Red, LED, Blue, Green
Illumination Voltage (Nominal)	2 VDC, 2.9 VDC
Mechanical Life	5000000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - DC	12 V

KP0215A Series

Part	Current Rating (Amps)	Color - Actuator/Cap	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Actuator Type	Type	Actuator Marking	Termination Style	Electrical Life	Mechanical Life	Voltage Rating - DC	Illumination Voltage (Nominal)	Circuit	Illumination Type, Color	Switch Function
NKK Switches KP0215ASBKG03RGBP-2FJB	100 mA	Clear	Through Hole	50 °C	-25 °C	Tactile/Audible Feedback	Button Square	Illuminated Standard	No Marking	PC Pin	5000000 Cycles	5000000 Cycles	12 V	2 VDC 2.9 VDC	SPST-NO	Blue Green LED Red	Off-Mom
NKK Switches KP0215ANBKG03RGBP-3TJB	100 mA	Clear	Through Hole	50 °C	-25 °C		Button Square	Illuminated Standard	No Marking	PC Pin	5000000 Cycles	5000000 Cycles	12 V	2 VDC 2.9 VDC	SPST-NO	Blue Green LED Red	Off-Mom
NKK Switches KP0215ANBKG03RGB-2SJB	100 mA	Clear	Through Hole	50 °C	-25 °C		Button Square	Illuminated Standard	No Marking	PC Pin	5000000 Cycles	5000000 Cycles	12 V	2 VDC 2.9 VDC	SPST-NO	Blue Green LED Red	Off-Mom
NKK Switches KP0215ANBKG03RGBP-2TJB	100 mA	Clear	Through Hole	50 °C	-25 °C		Button Square	Illuminated Standard	No Marking	PC Pin	5000000 Cycles	5000000 Cycles	12 V	2 VDC 2.9 VDC	SPST-NO	Blue Green LED Red	Off-Mom
NKK Switches KP0215ACBKG03RGB-3FJB	100 mA	Clear	Through Hole	50 °C	-25 °C	Tactile Feedback	Button Square	Illuminated Standard	No Marking	PC Pin	5000000 Cycles	5000000 Cycles	12 V	2 VDC 2.9 VDC	SPST-NO	Blue Green LED Red	Off-Mom
NKK Switches KP0215ACAKG03RGBP-1TJB	100 mA	Clear	Through Hole	50 °C	-25 °C	Tactile Feedback	Button Square	Illuminated Standard	No Marking	PC Pin	5000000 Cycles	5000000 Cycles	12 V	2 VDC 2.9 VDC	SPST-NO	Blue Green LED Red	Off-Mom
NKK Switches KP0215ASBKG03RGBP-2TJB	100 mA	Clear	Through Hole	50 °C	-25 °C	Tactile/Audible Feedback	Button Square	Illuminated Standard	No Marking	PC Pin	5000000 Cycles	5000000 Cycles	12 V	2 VDC 2.9 VDC	SPST-NO	Blue Green LED Red	Off-Mom
NKK Switches KP0215ACBKG03RGB-3TJB	100 mA	Clear	Through Hole	50 °C	-25 °C	Tactile Feedback	Button Square	Illuminated Standard	No Marking	PC Pin	5000000 Cycles	5000000 Cycles	12 V	2 VDC 2.9 VDC	SPST-NO	Blue Green LED Red	Off-Mom
NKK Switches KP0215ASBKG03RGBP-3SJB	100 mA	Clear	Through Hole	50 °C	-25 °C	Tactile/Audible Feedback	Button Square	Illuminated Standard	No Marking	PC Pin	5000000 Cycles	5000000 Cycles	12 V	2 VDC 2.9 VDC	SPST-NO	Blue Green LED Red	Off-Mom
NKK Switches KP0215ACBKG03RGBP-2TJB	100 mA	Clear	Through Hole	50 °C	-25 °C	Tactile Feedback	Button Square	Illuminated Standard	No Marking	PC Pin	5000000 Cycles	5000000 Cycles	12 V	2 VDC 2.9 VDC	SPST-NO	Blue Green LED Red	Off-Mom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.07

Description

General part information

KP0215A Series

Pushbutton Switch SPST-NO Standard, Illuminated Through Hole

Documents

Technical documentation and resources
