SDF-S09-203L011

Active

NorComp Inc.

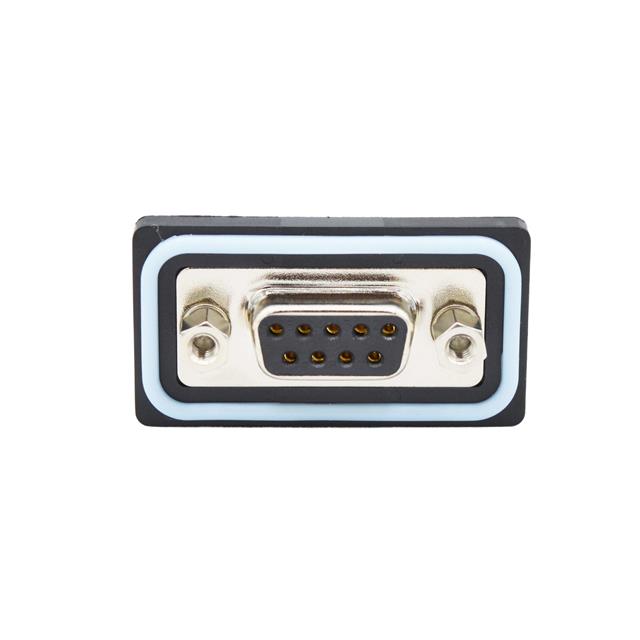

CONN D-SUB RCPT 9POS PNL MNT

Search across all available documentation for this part.

Active

NorComp Inc.

CONN D-SUB RCPT 9POS PNL MNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SDF-S09-203L011	SDF-S09 Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	0.76 Ám
Contact Finish Thickness	-	30 Áin
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Features	-	Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	9	9
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E	DE, E
Shell Size, Connector Layout [custom]	1	1

CONN D-SUB RCPT 9POS PNL MNT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Flange Feature	Contact Finish	Ingress Protection	Material Flammability Rating	Connector Type	Number of Rows	Contact Type	Contact Finish Thickness	Color	Contact Material	Connector Style	Current Rating (Amps)	Shell Material, Finish	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Contact Finish Thickness	Contact Finish Thickness
NorComp Inc. SDF-S09-203L011	-25 °C	85 °C	9	Female Screwlock (4-40), Mating Side	Gold	IP67 - Dust Tight, Waterproof	UL94 V-0	Receptacle, Female Sockets	2	Signal	Flash	Black	Brass	D-Sub	5 A	Nickel Plated, Steel	Polybutylene Terephthalate (PBT)	DE, E	1
NorComp Inc. SDF-S09-103L011	-25 °C	85 °C	9	Female Screwlock (4-40), Mating Side	Gold	IP67 - Dust Tight, Waterproof	UL94 V-0	Male Pins, Plug	2	Signal	Flash	Black	Brass	D-Sub	5 A	Nickel Plated, Steel	Polybutylene Terephthalate (PBT)	DE, E	1	Grounding Indents
NorComp Inc. SDF-S09-103L012	-25 °C	85 °C	9	Female Screwlock (4-40), Mating Side	Gold	IP67 - Dust Tight, Waterproof	UL94 V-0	Male Pins, Plug	2	Signal		Black	Brass	D-Sub	5 A	Nickel Plated, Steel	Polybutylene Terephthalate (PBT)	DE, E	1	Grounding Indents	0.76 Ám	30 Áin
NorComp Inc. SDF-S09-203L012	-25 °C	85 °C	9	Female Screwlock (4-40), Mating Side	Gold	IP67 - Dust Tight, Waterproof	UL94 V-0	Receptacle, Female Sockets	2	Signal		Black	Brass	D-Sub	5 A	Nickel Plated, Steel	Polybutylene Terephthalate (PBT)	DE, E	1		0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Receptacle, Female Sockets Connector
