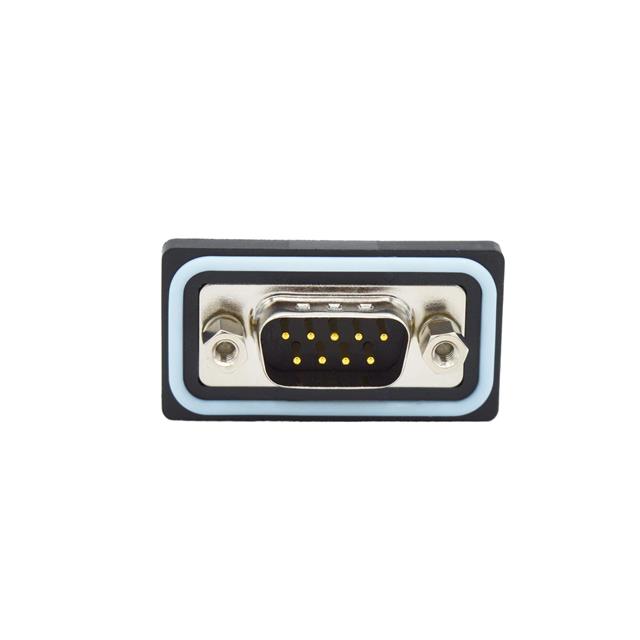

D SUB CONNECTOR, IP67, STANDARD, PLUG, NANOOK SERIES, 9 CONTACTS, DE, SOLDER CUP

Search across all available documentation for this part.

Active

NorComp Inc.

D SUB CONNECTOR, IP67, STANDARD, PLUG, NANOOK SERIES, 9 CONTACTS, DE, SOLDER CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Plug, Male Pins Connector

Technical documentation and resources

Specification	SDF-S09-103L012	SDF-S09 Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Finish Thickness	-	Flash
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Features	Grounding Indents	Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	9	9
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E	DE, E
Shell Size, Connector Layout [custom]	1	1

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Flange Feature	Contact Finish	Ingress Protection	Material Flammability Rating	Connector Type	Number of Rows	Contact Type	Contact Finish Thickness	Color	Contact Material	Connector Style	Current Rating (Amps)	Shell Material, Finish	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Contact Finish Thickness	Contact Finish Thickness
NorComp Inc. SDF-S09-203L011	-25 °C	85 °C	9	Female Screwlock (4-40), Mating Side	Gold	IP67 - Dust Tight, Waterproof	UL94 V-0	Receptacle, Female Sockets	2	Signal	Flash	Black	Brass	D-Sub	5 A	Nickel Plated, Steel	Polybutylene Terephthalate (PBT)	DE, E	1
NorComp Inc. SDF-S09-103L011	-25 °C	85 °C	9	Female Screwlock (4-40), Mating Side	Gold	IP67 - Dust Tight, Waterproof	UL94 V-0	Male Pins, Plug	2	Signal	Flash	Black	Brass	D-Sub	5 A	Nickel Plated, Steel	Polybutylene Terephthalate (PBT)	DE, E	1	Grounding Indents
NorComp Inc. SDF-S09-103L012	-25 °C	85 °C	9	Female Screwlock (4-40), Mating Side	Gold	IP67 - Dust Tight, Waterproof	UL94 V-0	Male Pins, Plug	2	Signal		Black	Brass	D-Sub	5 A	Nickel Plated, Steel	Polybutylene Terephthalate (PBT)	DE, E	1	Grounding Indents	0.76 Ám	30 Áin
NorComp Inc. SDF-S09-203L012	-25 °C	85 °C	9	Female Screwlock (4-40), Mating Side	Gold	IP67 - Dust Tight, Waterproof	UL94 V-0	Receptacle, Female Sockets	2	Signal		Black	Brass	D-Sub	5 A	Nickel Plated, Steel	Polybutylene Terephthalate (PBT)	DE, E	1		0.76 Ám	30 Áin
