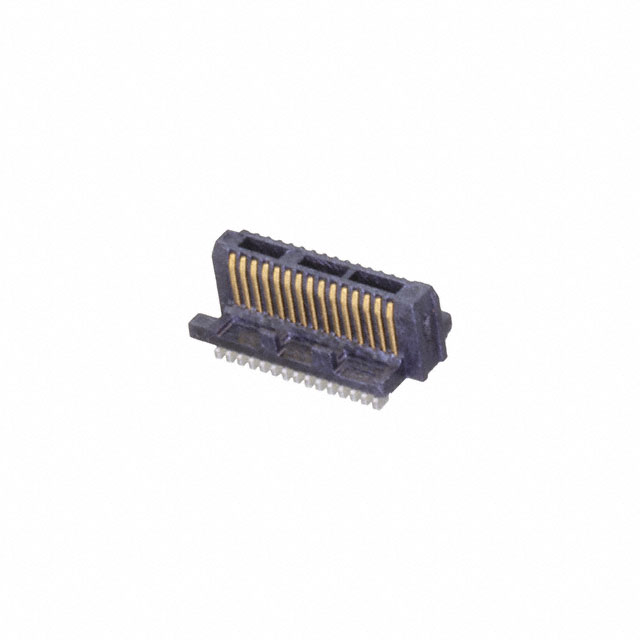

ST4-15-1.00-L-D-P-TR
ActiveSamtec Inc.
CONN HDR 30POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
ST4-15-1.00-L-D-P-TR
ActiveSamtec Inc.
CONN HDR 30POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ST4-15-1.00-L-D-P-TR |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Pick and Place |
| Height Above Board | 3.07 mm |
| Height Above Board | 0.121 in |
| Mated Stacking Heights | 4 mm, 4.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.90 | |
| 100 | $ 2.59 | |||
| 250 | $ 2.34 | |||
| 500 | $ 2.04 | |||
| Digi-Reel® | 1 | $ 2.90 | ||
| 100 | $ 2.59 | |||
| 250 | $ 2.34 | |||
| 500 | $ 2.04 | |||
| Tape & Reel (TR) | 1125 | $ 1.96 | ||
| 3375 | $ 1.60 | |||
Description
General part information
ST4-15 Series
30 Position Connector Header, Center Strip Contacts Surface Mount Gold
