ST4-15-1.50-L-D-P-TR

Active

Samtec Inc.

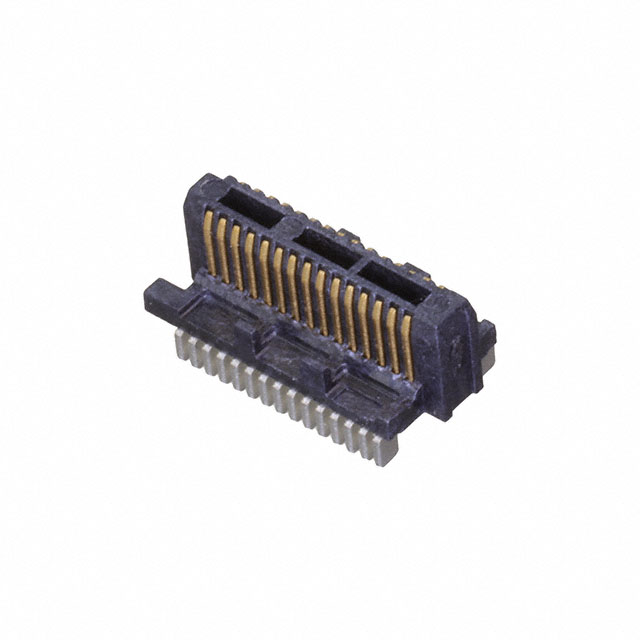

CONN HDR 30POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ST4-15-1.50-L-D-P-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place
Height Above Board	0.141 in
Height Above Board	3.58 mm
Mated Stacking Heights	4.5 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Features	Mated Stacking Heights	Connector Type	Height Above Board	Height Above Board	Contact Finish	Number of Positions	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. ST4-15-1.00-L-D-P-TR	Pick and Place	4 mm 4.5 mm	Header Center Strip Contacts	3.07 mm	0.121 in	Gold	30	Surface Mount	2	0.016 in	0.4 mm	10 Áin	0.25 Ám
Samtec Inc. ST4-15-1.50-L-D-P-TR	Pick and Place	4.5 mm 5 mm	Header Center Strip Contacts	3.58 mm	0.141 in	Gold	30	Surface Mount	2	0.016 in	0.4 mm	10 Áin	0.25 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Connector Header, Center Strip Contacts Surface Mount Gold
