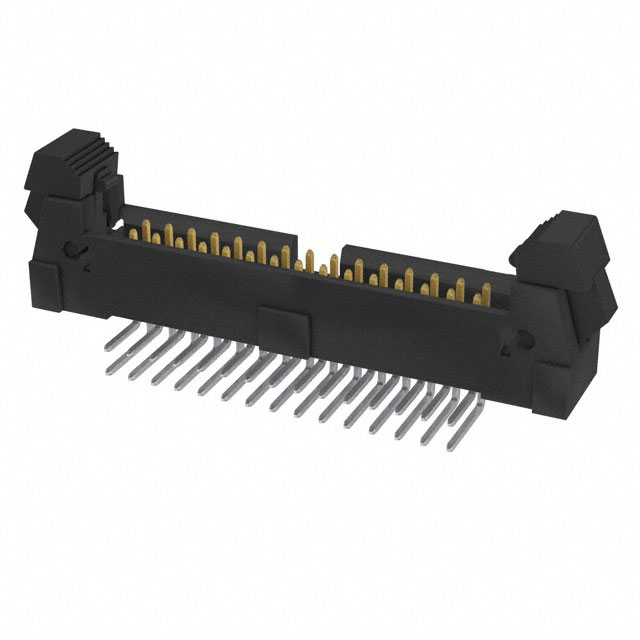

EHT-115-01-L-D-RA-SR

Active

Samtec Inc.

2 TIN 2MM -55℃~+125℃ PHOSPHOR BRONZE RIGHT-ANGLE PUSH-PULL WIRE TO BOARD CONNECTOR ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEHT Series Other Related Documents 01 Datasheet +1

EHT-115-01-L-D-RA-SR

Active

Samtec Inc.

2 TIN 2MM -55℃~+125℃ PHOSPHOR BRONZE RIGHT-ANGLE PUSH-PULL WIRE TO BOARD CONNECTOR ROHS

Deep-Dive with AI

DocumentsEHT Series Other Related Documents 01 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHT-115-01-L-D-RA-SR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks
Features	Strain Relief, Keying Slot
Insulation Color	Black
Insulation Height [z]	0.3 in
Insulation Height [z]	7.62 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHT-115 Series

Part	Current Rating (Amps)	Contact Shape	Style	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Type	Fastening Type	Insulation Material	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Insulation Color	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Mounting Type	Insulation Height	Insulation Height	Shrouding	Number of Rows	Termination	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]
Samtec Inc. EHT-115-01-SM-D-SM	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Keying Slot	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Surface Mount	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	30 Áin	0.76 Ám
Samtec Inc. EHT-115-01-L-D-SM-LC-P-TR	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Board Lock Keying Slot Pick and Place	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Surface Mount	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	15 µin	0.38 µm
Samtec Inc. EHT-115-01-S-D-SM-TR	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Keying Slot	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Surface Mount	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	30 Áin	0.76 Ám
Samtec Inc. EHT-115-01-L-D	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Keying Slot	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Through Hole	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	15 µin	0.38 µm	0.114 in	2.9 mm
Samtec Inc. EHT-115-01-S-D	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Keying Slot	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Through Hole	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	30 Áin	0.76 Ám	0.114 in	2.9 mm
Samtec Inc. EHT-115-01-S-D-SM-K-TR	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Keying Slot Pick and Place	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Surface Mount	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	30 Áin	0.76 Ám
Samtec Inc. EHT-115-01-S-D-SM-09-P-TR	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Keying Slot Pick and Place	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm		Surface Mount	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	30 Áin	0.76 Ám			29
Samtec Inc. EHT-115-01-S-D-SM-LC-P	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Board Lock Keying Slot Pick and Place	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Surface Mount	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	30 Áin	0.76 Ám
Samtec Inc. EHT-115-01-L-D-RA-SR	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Keying Slot Strain Relief	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Through Hole Right Angle			Shrouded - 4 Wall	2	Solder	UL94 V-0	15 µin	0.38 µm				0.12 in	3.05 mm	0.3 in	7.62 mm
Samtec Inc. EHT-115-01-L-D-SM	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Keying Slot	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Surface Mount	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	15 µin	0.38 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	11	$ 10.78
LCSC	Piece	1	$ 20.37
		198	$ 8.13
		495	$ 7.86
		1001	$ 7.72
