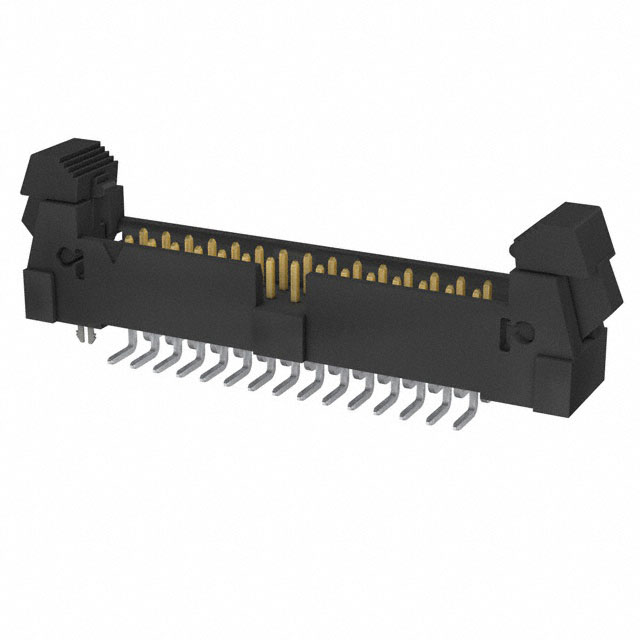

EHT-115-01-L-D-SM-LC-P-TR

Active

Samtec Inc.

CONN HEADER SMD 30POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

EHT-115-01-L-D-SM-LC-P-TR

Active

Samtec Inc.

CONN HEADER SMD 30POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHT-115-01-L-D-SM-LC-P-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks
Features	Pick and Place, Board Lock, Keying Slot
Insulation Color	Black
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHT-115 Series

Part	Current Rating (Amps)	Contact Shape	Style	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Type	Fastening Type	Insulation Material	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Insulation Color	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Mounting Type	Insulation Height	Insulation Height	Shrouding	Number of Rows	Termination	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]
Samtec Inc. EHT-115-01-SM-D-SM	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Keying Slot	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Surface Mount	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	30 Áin	0.76 Ám
Samtec Inc. EHT-115-01-L-D-SM-LC-P-TR	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Board Lock Keying Slot Pick and Place	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Surface Mount	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	15 µin	0.38 µm
Samtec Inc. EHT-115-01-S-D-SM-TR	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Keying Slot	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Surface Mount	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	30 Áin	0.76 Ám
Samtec Inc. EHT-115-01-L-D	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Keying Slot	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Through Hole	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	15 µin	0.38 µm	0.114 in	2.9 mm
Samtec Inc. EHT-115-01-S-D	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Keying Slot	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Through Hole	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	30 Áin	0.76 Ám	0.114 in	2.9 mm
Samtec Inc. EHT-115-01-S-D-SM-K-TR	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Keying Slot Pick and Place	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Surface Mount	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	30 Áin	0.76 Ám
Samtec Inc. EHT-115-01-S-D-SM-09-P-TR	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Keying Slot Pick and Place	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm		Surface Mount	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	30 Áin	0.76 Ám			29
Samtec Inc. EHT-115-01-S-D-SM-LC-P	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Board Lock Keying Slot Pick and Place	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Surface Mount	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	30 Áin	0.76 Ám
Samtec Inc. EHT-115-01-L-D-RA-SR	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Keying Slot Strain Relief	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Through Hole Right Angle			Shrouded - 4 Wall	2	Solder	UL94 V-0	15 µin	0.38 µm				0.12 in	3.05 mm	0.3 in	7.62 mm
Samtec Inc. EHT-115-01-L-D-SM	3 A	Square	Board to Cable/Wire	Phosphor Bronze	-55 °C	125 °C	Keying Slot	Male Pin	Latch Lock/Eject Hooks	Liquid Crystal Polymer (LCP)	3.05 mm	0.12 in	Gold	Black	30	0.079 in	2 mm	Tin	Header	0.079 in	2 mm	All	Surface Mount	0.37 in	9.4 mm	Shrouded - 4 Wall	2	Solder	UL94 V-0	15 µin	0.38 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	125	$ 7.88

Description

General part information

EHT-115 Series

Connector Header Surface Mount 30 position 0.079" (2.00mm)
