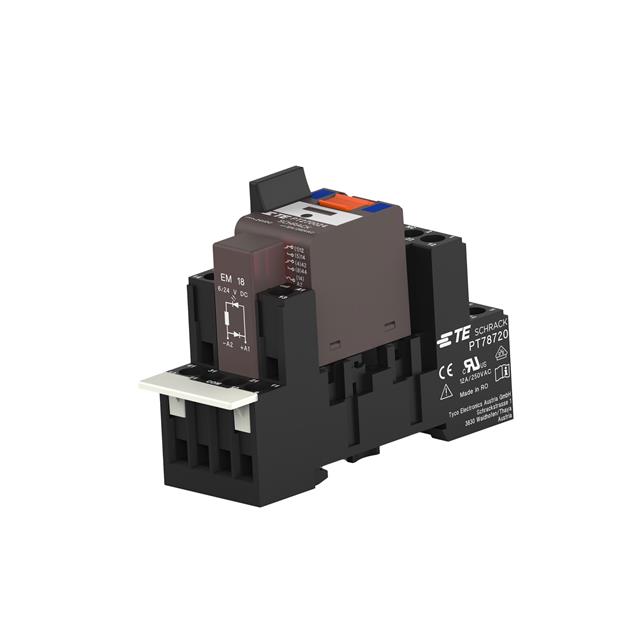

2-1415366-1
UnknownTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 12A 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1415366-1
UnknownTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 12A 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1415366-1 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 23.7 mA |
| Coil Insulation | Class F |
| Coil Resistance | 4.85 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 115 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 12 A |
| Features | Socket Included, Lighted Indicator, Mechanical Indicator, Test Button |
| Load - Max Switching | 4800 VA |
| Mounting Type | DIN Rail |
| Must Operate Voltage | 92 VAC |
| Must Release Voltage | 34.5 VAC |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 30.65 | |
Description
General part information
PT2S7 Series
General Purpose Relay DPDT (2 Form C) 115VAC Coil DIN Rail
