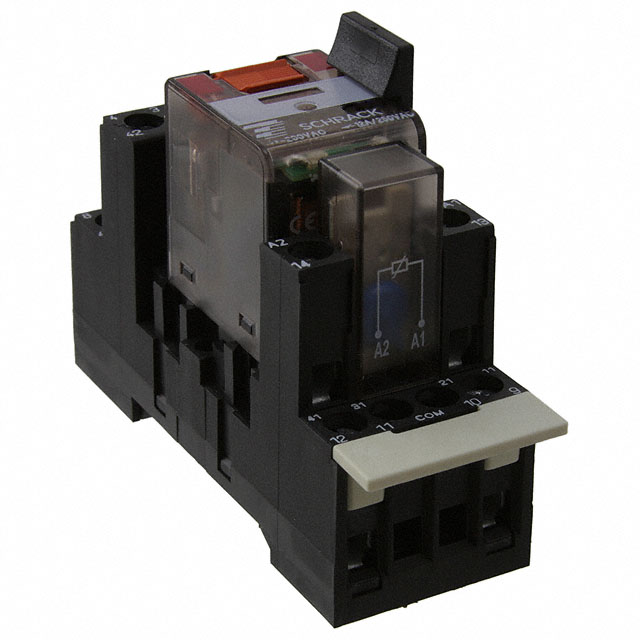

PT2S7TD0
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 12A 230V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PT2S7TD0 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 11.8 mA |
| Coil Insulation | Class F |
| Coil Resistance | 19.47 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 230 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 12 A |
| Features | Socket Included, Lighted Indicator, Mechanical Indicator, Test Button |
| Load - Max Switching | 4800 VA |
| Mounting Type | DIN Rail |
| Must Operate Voltage | 184 VAC |
| Must Release Voltage | 69 VAC |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 38.88 | |
| 10 | $ 36.94 | |||
| 25 | $ 35.00 | |||
| 50 | $ 33.05 | |||
| 100 | $ 31.11 | |||
| 250 | $ 29.16 | |||
Description
General part information
PT2S7 Series
General Purpose Relay DPDT (2 Form C) 230VAC Coil DIN Rail
