825433-8
ActiveTE Connectivity AMP Connectors

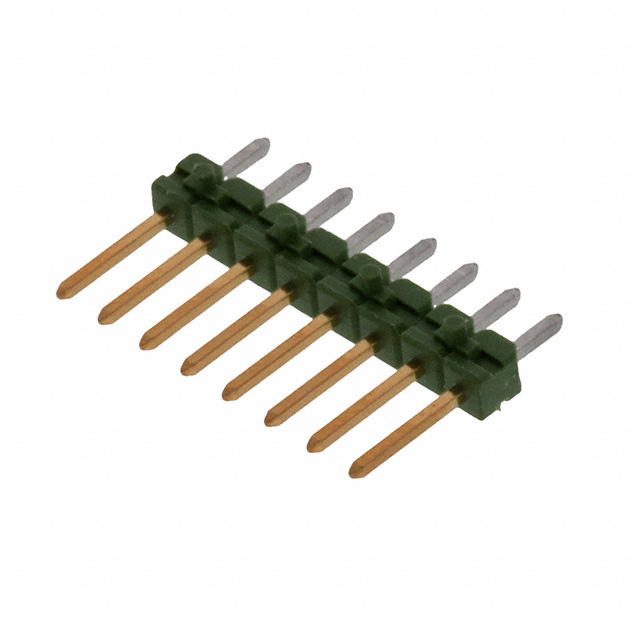

CONN HEADER VERT 8POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
825433-8
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 8POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 825433-8 | 825433 Series |
|---|---|---|
| Connector Type | Breakaway, Header | Breakaway, Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | Flash | Flash |
| Contact Finish Thickness - Post | 2.5 µm | 2.5 µm |
| Contact Finish Thickness - Post | 98.4 µin | 98.4 µin |
| Contact Length - Mating | 6.7 mm | 6.7 mm |
| Contact Length - Mating | 0.264 in | 0.264 in |
| Contact Length - Post | 3.2 mm | 3.2 mm |
| Contact Length - Post [x] | 0.126 in | 0.126 in |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 5 A | 5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Green | Green |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 8 | 2 - 50 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 12.7 mm | 12.7 mm |
| Overall Contact Length | 0.5 " | 0.5 " |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
825433 Series
CONN HEADER VERT 32POS 2.54MM
| Part | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post | Termination | Contact Material | Fastening Type | Style | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Rows | Material Flammability Rating | Contact Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Contact Length - Post | Contact Length - Post [x] | Insulation Color | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Overall Contact Length | Overall Contact Length | Connector Type | Contact Finish Thickness - Mating | Insulation Material | Contact Finish - Mating | Contact Shape | Number of Positions | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-825433-2 | 6.7 mm | 0.264 in | Tin | Solder | Brass | Push-Pull | Board to Board, Cable | All | -65 ░C | 105 ░C | Through Hole | 1 | UL94 V-0 | Male Pin | 2.5 µm | 98.4 µin | Unshrouded | 3.2 mm | 0.126 in | Green | 0.1 in | 2.54 mm | 5 A | 12.7 mm | 0.5 " | Breakaway, Header | Flash | Polybutylene Terephthalate (PBT) | Gold | Square | ||
TE Connectivity AMP Connectors 825433-2 | 6.7 mm | 0.264 in | Tin | Solder | Brass | Push-Pull | Board to Board, Cable | All | -65 ░C | 105 ░C | Through Hole | 1 | UL94 V-0 | Male Pin | 2.5 µm | 98.4 µin | Unshrouded | 3.2 mm | 0.126 in | Green | 0.1 in | 2.54 mm | 5 A | 12.7 mm | 0.5 " | Breakaway, Header | Flash | Polybutylene Terephthalate (PBT) | Gold | Square | 2 | |
TE Connectivity AMP Connectors 825433-9 | 6.7 mm | 0.264 in | Tin | Solder | Brass | Push-Pull | Board to Board, Cable | All | -65 ░C | 105 ░C | Through Hole | 1 | UL94 V-0 | Male Pin | 2.5 µm | 98.4 µin | Unshrouded | 3.2 mm | 0.126 in | Green | 0.1 in | 2.54 mm | 5 A | 12.7 mm | 0.5 " | Breakaway, Header | Flash | Polybutylene Terephthalate (PBT) | Gold | Square | 9 | |
TE Connectivity AMP Connectors 1-825433-0 | 6.7 mm | 0.264 in | Tin | Solder | Brass | Push-Pull | Board to Board, Cable | All | -65 ░C | 105 ░C | Through Hole | 1 | UL94 V-0 | Male Pin | 2.5 µm | 98.4 µin | Unshrouded | 3.2 mm | 0.126 in | Green | 0.1 in | 2.54 mm | 5 A | 12.7 mm | 0.5 " | Breakaway, Header | Flash | Polybutylene Terephthalate (PBT) | Gold | Square | 10 | |
TE Connectivity AMP Connectors 825433-6 | 6.7 mm | 0.264 in | Tin | Solder | Brass | Push-Pull | Board to Board, Cable | All | -65 ░C | 105 ░C | Through Hole | 1 | UL94 V-0 | Male Pin | 2.5 µm | 98.4 µin | Unshrouded | 3.2 mm | 0.126 in | Green | 0.1 in | 2.54 mm | 5 A | 12.7 mm | 0.5 " | Breakaway, Header | Flash | Polybutylene Terephthalate (PBT) | Gold | Square | 6 | |
TE Connectivity AMP Connectors 825433-5 | 6.7 mm | 0.264 in | Tin | Solder | Brass | Push-Pull | Board to Board, Cable | All | -65 ░C | 105 ░C | Through Hole | 1 | UL94 V-0 | Male Pin | 2.5 µm | 98.4 µin | Unshrouded | 3.2 mm | 0.126 in | Green | 0.1 in | 2.54 mm | 5 A | 12.7 mm | 0.5 " | Breakaway, Header | Flash | Polybutylene Terephthalate (PBT) | Gold | Square | ||
TE Connectivity AMP Connectors 1-825433-7 | 6.7 mm | 0.264 in | Tin | Solder | Brass | Push-Pull | Board to Board, Cable | All | -65 ░C | 105 ░C | Through Hole | 1 | UL94 V-0 | Male Pin | 2.5 µm | 98.4 µin | Unshrouded | 3.2 mm | 0.126 in | Green | 0.1 in | 2.54 mm | 5 A | 12.7 mm | 0.5 " | Breakaway, Header | Flash | Polybutylene Terephthalate (PBT) | Gold | Square | ||
TE Connectivity AMP Connectors 2-825433-2 | 6.7 mm | 0.264 in | Tin | Solder | Brass | Push-Pull | Board to Board, Cable | All | -65 ░C | 105 ░C | Through Hole | 1 | UL94 V-0 | Male Pin | 2.5 µm | 98.4 µin | Unshrouded | 3.2 mm | 0.126 in | Green | 0.1 in | 2.54 mm | 5 A | 12.7 mm | 0.5 " | Breakaway, Header | Flash | Polybutylene Terephthalate (PBT) | Gold | Square | 22 positions | |
TE Connectivity AMP Connectors 1-825433-8 | 6.7 mm | 0.264 in | Tin | Solder | Brass | Push-Pull | Board to Board, Cable | All | -65 ░C | 105 ░C | Through Hole | 1 | UL94 V-0 | Male Pin | 2.5 µm | 98.4 µin | Unshrouded | 3.2 mm | 0.126 in | Green | 0.1 in | 2.54 mm | 5 A | 12.7 mm | 0.5 " | Breakaway, Header | Flash | Polybutylene Terephthalate (PBT) | Gold | Square | 18 | |
TE Connectivity AMP Connectors 1-825433-6 | 6.7 mm | 0.264 in | Tin | Solder | Brass | Push-Pull | Board to Board, Cable | All | -65 ░C | 105 ░C | Through Hole | 1 | UL94 V-0 | Male Pin | 2.5 µm | 98.4 µin | Unshrouded | 3.2 mm | 0.126 in | Green | 0.1 in | 2.54 mm | 5 A | 12.7 mm | 0.5 " | Breakaway, Header | Flash | Polybutylene Terephthalate (PBT) | Gold | Square | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.59 | |
| 10 | $ 1.42 | |||
| 100 | $ 1.28 | |||
| 500 | $ 1.27 | |||
Description
General part information
825433 Series
Connector Header Through Hole 8 position 0.100" (2.54mm)
