825433-5

Active

TE Connectivity AMP Connectors

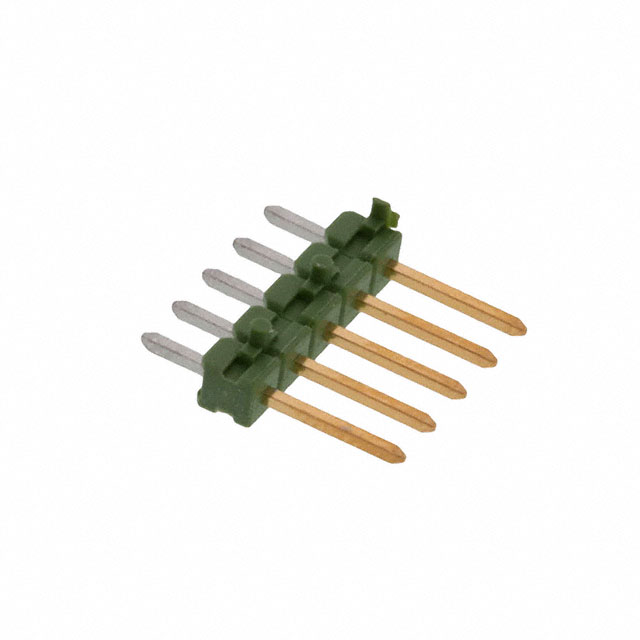

CONN HEADER VERT 5POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

825433-5

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 5POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.42
		10	$ 0.41
		100	$ 0.33
		900	$ 0.30

Description

General part information

825433 Series

Connector Header Through Hole 5 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	825433-5	825433 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	2.5 µm	2.5 µm
Contact Finish Thickness - Post	98.4 µin	98.4 µin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	-	2 - 50
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	12.7 mm	12.7 mm
Overall Contact Length	0.5 "	0.5 "
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

825433 Series

CONN HEADER VERT 32POS 2.54MM

Part	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Termination	Contact Material	Fastening Type	Style	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Rows	Material Flammability Rating	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Length - Post	Contact Length - Post [x]	Insulation Color	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Connector Type	Contact Finish Thickness - Mating	Insulation Material	Contact Finish - Mating	Contact Shape	Number of Positions	Number of Positions
TE Connectivity AMP Connectors 3-825433-2	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square
TE Connectivity AMP Connectors 825433-2	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square	2
TE Connectivity AMP Connectors 825433-9	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square	9
TE Connectivity AMP Connectors 1-825433-0	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square	10
TE Connectivity AMP Connectors 825433-6	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square	6
TE Connectivity AMP Connectors 825433-5	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square
TE Connectivity AMP Connectors 1-825433-7	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square
TE Connectivity AMP Connectors 2-825433-2	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square	22 positions
TE Connectivity AMP Connectors 1-825433-8	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square	18
TE Connectivity AMP Connectors 1-825433-6	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square		16
