2-825433-2

Active

TE Connectivity AMP Connectors

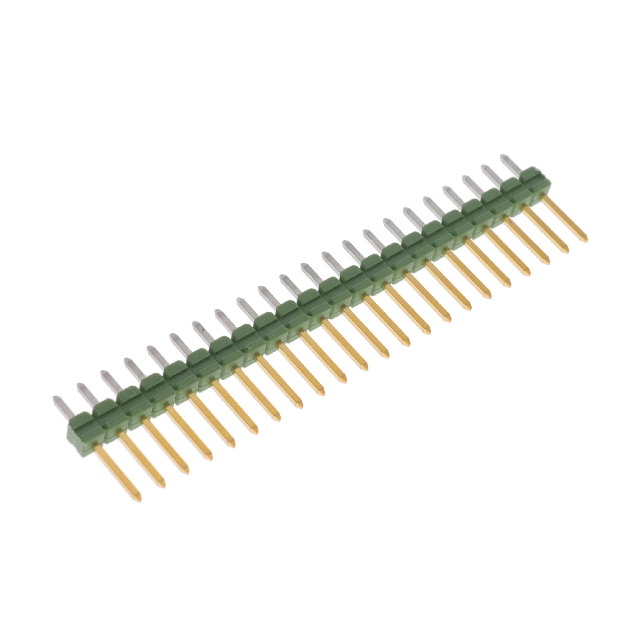

CONN HEADER VERT 22POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

2-825433-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 22POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-825433-2	825433 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	2.5 µm	2.5 µm
Contact Finish Thickness - Post	98.4 µin	98.4 µin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	22 positions	2 - 50
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	12.7 mm	12.7 mm
Overall Contact Length	0.5 "	0.5 "
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

825433 Series

CONN HEADER VERT 32POS 2.54MM

Part	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Termination	Contact Material	Fastening Type	Style	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Rows	Material Flammability Rating	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Length - Post	Contact Length - Post [x]	Insulation Color	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Connector Type	Contact Finish Thickness - Mating	Insulation Material	Contact Finish - Mating	Contact Shape	Number of Positions	Number of Positions
TE Connectivity AMP Connectors 3-825433-2	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square
TE Connectivity AMP Connectors 825433-2	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square	2
TE Connectivity AMP Connectors 825433-9	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square	9
TE Connectivity AMP Connectors 1-825433-0	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square	10
TE Connectivity AMP Connectors 825433-6	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square	6
TE Connectivity AMP Connectors 825433-5	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square
TE Connectivity AMP Connectors 1-825433-7	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square
TE Connectivity AMP Connectors 2-825433-2	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square	22 positions
TE Connectivity AMP Connectors 1-825433-8	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square	18
TE Connectivity AMP Connectors 1-825433-6	6.7 mm	0.264 in	Tin	Solder	Brass	Push-Pull	Board to Board, Cable	All	-65 ░C	105 ░C	Through Hole	1	UL94 V-0	Male Pin	2.5 µm	98.4 µin	Unshrouded	3.2 mm	0.126 in	Green	0.1 in	2.54 mm	5 A	12.7 mm	0.5 "	Breakaway, Header	Flash	Polybutylene Terephthalate (PBT)	Gold	Square		16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.66
		10	$ 1.48
		300	$ 1.33
		600	$ 1.32

Description

General part information

825433 Series

Connector Header Through Hole 22 position 0.100" (2.54mm)
