356-030-420-108

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

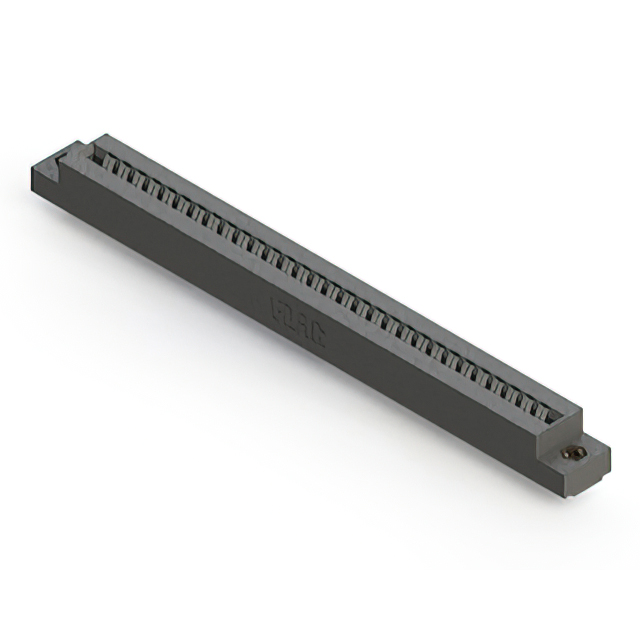

356-030-420-108

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	356-030-420-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	60
Number of Positions/Bay/Row [custom]	30
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

356-030 Series

Part	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Card Type	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Number of Rows	Contact Type	Pitch [x]	Pitch [x]	Termination Rows	Mounting Type	Termination	Color	Contact Finish	Read Out	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Features
EDAC Inc. 356-030-421-101	Copper Alloy	60	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	0.156 in	3.96 mm	1	Through Hole	Solder	Black	Tin	Dual
EDAC Inc. 356-030-421-104	Copper Alloy	60	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	0.156 in	3.96 mm	1	Panel Mount Through Hole	Solder	Black	Tin	Dual	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 356-030-400-104	Copper Alloy	60	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	0.156 in	3.96 mm	1		Solder Eyelet(s)	Black	Tin	Dual	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 356-030-420-104	Copper Alloy	60	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	0.156 in	3.96 mm	1	Panel Mount Through Hole	Solder	Black	Tin	Dual	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 356-030-420-102	Copper Alloy	60	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	0.156 in	3.96 mm	1	Panel Mount Through Hole	Solder	Black	Tin	Dual	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "
EDAC Inc. 356-030-500-112	Copper Alloy	60	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	0.156 in	3.96 mm	1		Solder Eyelet(s)	Black	Gold	Dual	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	10 Áin	0.25 Ám
EDAC Inc. 356-030-500-158	Copper Alloy	60	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	0.156 in	3.96 mm	1		Solder Eyelet(s)	Black	Gold	Dual		4-40 Flush Mount Threaded Insert Top Opening		10 Áin	0.25 Ám	Card Guides
EDAC Inc. 356-030-420-168	Copper Alloy	60	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	0.156 in	3.96 mm	1	Panel Mount Through Hole	Solder	Black	Tin	Dual		4-40 Flush Mount Threaded Insert Top Opening				Card Guides
EDAC Inc. 356-030-420-108	Copper Alloy	60	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	0.156 in	3.96 mm	1	Panel Mount Through Hole	Solder	Black	Tin	Dual		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 356-030-400-112	Copper Alloy	60	-40 °C	105 ░C	Polyester Thermoplastic	Non Specified - Dual Edge	30	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2	Cantilever	0.156 in	3.96 mm	1		Solder Eyelet(s)	Black	Tin	Dual	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 20.02
Newark	Each	1	$ 21.04
		100	$ 13.12
		250	$ 11.02
		500	$ 9.81
		1000	$ 8.25

Description

General part information

356-030 Series

60 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
