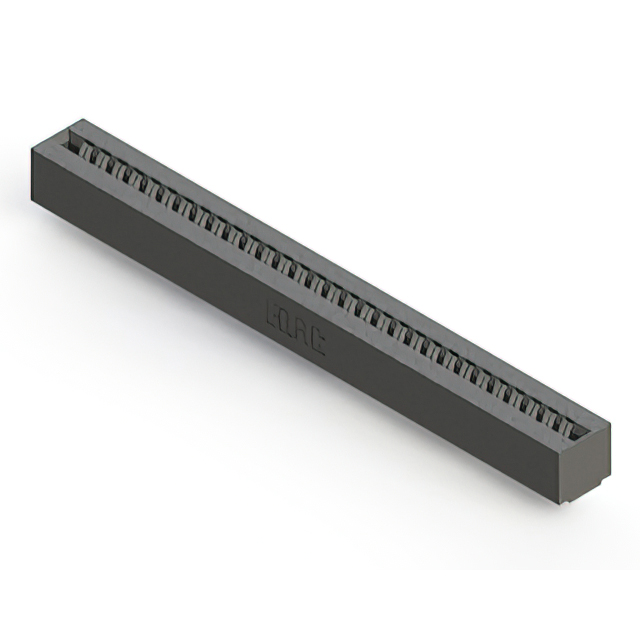

356-030-421-101
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 60POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
356-030-421-101
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 60POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 356-030-421-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 60 |
| Number of Positions/Bay/Row [custom] | 30 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
356-030 Series
| Part | Contact Material | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Card Type | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Number of Rows | Contact Type | Pitch [x] | Pitch [x] | Termination Rows | Mounting Type | Termination | Color | Contact Finish | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 60 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | Cantilever | 0.156 in | 3.96 mm | 1 | Through Hole | Solder | Black | Tin | Dual | ||||||
EDAC Inc. | Copper Alloy | 60 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | Cantilever | 0.156 in | 3.96 mm | 1 | Panel Mount Through Hole | Solder | Black | Tin | Dual | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |||
EDAC Inc. | Copper Alloy | 60 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | Cantilever | 0.156 in | 3.96 mm | 1 | Solder Eyelet(s) | Black | Tin | Dual | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | ||||
EDAC Inc. | Copper Alloy | 60 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | Cantilever | 0.156 in | 3.96 mm | 1 | Panel Mount Through Hole | Solder | Black | Tin | Dual | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |||
EDAC Inc. | Copper Alloy | 60 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | Cantilever | 0.156 in | 3.96 mm | 1 | Panel Mount Through Hole | Solder | Black | Tin | Dual | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | |||
EDAC Inc. | Copper Alloy | 60 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | Cantilever | 0.156 in | 3.96 mm | 1 | Solder Eyelet(s) | Black | Gold | Dual | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Copper Alloy | 60 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | Cantilever | 0.156 in | 3.96 mm | 1 | Solder Eyelet(s) | Black | Gold | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Card Guides | |||
EDAC Inc. | Copper Alloy | 60 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | Cantilever | 0.156 in | 3.96 mm | 1 | Panel Mount Through Hole | Solder | Black | Tin | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | Copper Alloy | 60 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | Cantilever | 0.156 in | 3.96 mm | 1 | Panel Mount Through Hole | Solder | Black | Tin | Dual | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Copper Alloy | 60 | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2 | Cantilever | 0.156 in | 3.96 mm | 1 | Solder Eyelet(s) | Black | Tin | Dual | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 15.92 | |
Description
General part information
356-030 Series
60 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
