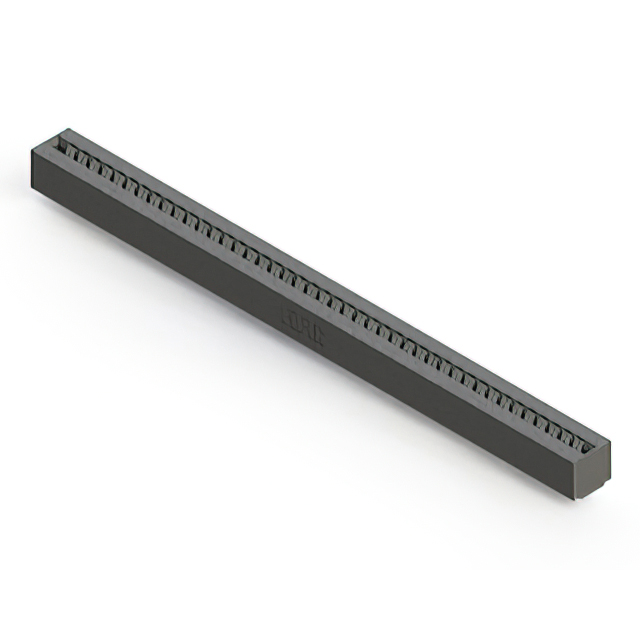

356-043-421-101

Active

EDAC Inc.

CONN EDGE DUAL FMALE 86POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

356-043-421-101

Active

EDAC Inc.

CONN EDGE DUAL FMALE 86POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	356-043-421-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	86
Number of Positions/Bay/Row [custom]	43
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

356-043 Series

Part	Flange Feature	Contact Material	Number of Positions	Gender	Contact Type	Number of Positions/Bay/Row [custom]	Color	Pitch [x]	Pitch [x]	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Read Out	Number of Rows	Features	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Card Type	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 356-043-421-158	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	86	Female	Cantilever	43	Black	0.156 in	3.96 mm	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Dual	2	Card Guides	Solder	-40 °C	105 ░C	1	Non Specified - Dual Edge	Polyester Thermoplastic
EDAC Inc. 356-043-400-178	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	86	Female	Cantilever	43	Black	0.156 in	3.96 mm		1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Dual	2	Card Guides	Solder Eyelet(s)	-40 °C	105 ░C	1	Non Specified - Dual Edge	Polyester Thermoplastic
EDAC Inc. 356-043-420-158	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	86	Female	Cantilever	43	Black	0.156 in	3.96 mm	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Dual	2	Card Guides	Solder	-40 °C	105 ░C	1	Non Specified - Dual Edge	Polyester Thermoplastic
EDAC Inc. 356-043-400-102	Flush Mount Top Opening Unthreaded	Copper Alloy	86	Female	Cantilever	43	Black	0.156 in	3.96 mm		1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Dual	2		Solder Eyelet(s)	-40 °C	105 ░C	1	Non Specified - Dual Edge	Polyester Thermoplastic	3.25 mm	0.128 "
EDAC Inc. 356-043-520-104	Flush Mount Top Opening Unthreaded	Copper Alloy	86	Female	Cantilever	43	Black	0.156 in	3.96 mm	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	2		Solder	-40 °C	105 ░C	1	Non Specified - Dual Edge	Polyester Thermoplastic	3.96 mm	0.156 in	10 Áin	0.25 Ám
EDAC Inc. 356-043-520-102	Flush Mount Top Opening Unthreaded	Copper Alloy	86	Female	Cantilever	43	Black	0.156 in	3.96 mm	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	2		Solder	-40 °C	105 ░C	1	Non Specified - Dual Edge	Polyester Thermoplastic	3.25 mm	0.128 "	10 Áin	0.25 Ám
EDAC Inc. 356-043-500-158	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	86	Female	Cantilever	43	Black	0.156 in	3.96 mm		1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	2	Card Guides	Solder Eyelet(s)	-40 °C	105 ░C	1	Non Specified - Dual Edge	Polyester Thermoplastic			10 Áin	0.25 Ám
EDAC Inc. 356-043-421-101		Copper Alloy	86	Female	Cantilever	43	Black	0.156 in	3.96 mm	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Dual	2		Solder	-40 °C	105 ░C	1	Non Specified - Dual Edge	Polyester Thermoplastic
EDAC Inc. 356-043-420-107	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	86	Female	Cantilever	43	Black	0.156 in	3.96 mm	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	Dual	2		Solder	-40 °C	105 ░C	1	Non Specified - Dual Edge	Polyester Thermoplastic
EDAC Inc. 356-043-521-178	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	86	Female	Cantilever	43	Black	0.156 in	3.96 mm	Panel Mount Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	2	Card Guides	Solder	-40 °C	105 ░C	1	Non Specified - Dual Edge	Polyester Thermoplastic			10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 21.90

Description

General part information

356-043 Series

86 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
