PT-54-B-L31-EPD

Obsolete

Luminus Devices Inc.

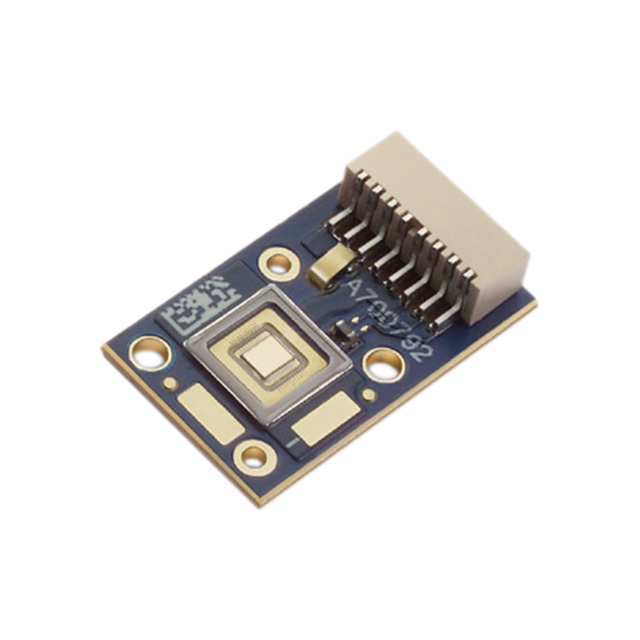

LED MOD PT-54 BLUE RECT

Search across all available documentation for this part.

Obsolete

Luminus Devices Inc.

LED MOD PT-54 BLUE RECT

Technical Specifications

Parameters and characteristics for this part

Specification	PT-54-B-L31-EPD

Color	Blue
Configuration	Rectangle
Current - Test	13.5 A
Features	With Connector
Height [z]	6.4 mm
Lens Type	Flat
Light Emitting Surface (LES) [x]	2 mm
Light Emitting Surface (LES) [y]	2.7 mm
Lumens/Watt @ Current - Test	9 lm/W
Luminous Flux @ Current/Temperature	430 lm
Size / Dimension [x]	26.5 mm
Size / Dimension [y]	16 mm
Temperature - Test	40 °C
Type	LED Module
Voltage - Forward (Vf) (Typ)	3.7 V
Wavelength	462 nm

Part	Wavelength	Size / Dimension [x]	Size / Dimension [y]	Luminous Flux @ Current/Temperature	Temperature - Test	Type	Features	Lens Type	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Configuration	Current - Test	Height [z]	Color	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]
Luminus Devices Inc. PT-54-B-L31-EPF	462 nm	26.5 mm	16 mm	495 lm	40 °C	LED Module	With Connector	Flat	2 mm	2.7 mm	3.7 V	10 lm/W	Rectangle	13.5 A	6.4 mm	Blue
Luminus Devices Inc. PT-54-G-L31-MPJ	525 nm	26.5 mm	16 mm	2400 lm	40 °C	LED Module	With Connector	Flat	2 mm	2.7 mm	5.2 V	34 lm/W	Rectangle	13.5 A	6.4 mm	Green	2800 lm	2000 lm
Luminus Devices Inc. PT-54-B-L31-EPD	462 nm	26.5 mm	16 mm	430 lm	40 °C	LED Module	With Connector	Flat	2 mm	2.7 mm	3.7 V	9 lm/W	Rectangle	13.5 A	6.4 mm	Blue
Luminus Devices Inc. PT-54-G-C21-MPE						LED Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module PT-54 Blue Rectangle
