Part	Size / Dimension Width	Size / Dimension Length	Current - Test	Wavelength	Lens Type	Height	Features	Voltage - Forward (Vf) (Typ)	Color	Lumens/Watt	Configuration	Light Emitting Surface (LES) Width	Light Emitting Surface (LES) Length	Temperature - Test	Luminous Flux (Maximum)	Luminous Flux	Luminous Flux (Minimum)	Type
Luminus Devices Inc. PT-54-B-L31-EPF	16 mm	26.5 mm	13.5 A	462 nm	Flat	6.4 mm	With Connector	3.7 V	Blue	10 lm/W	Rectangle	2.7 mm	2 mm	40 °C	590 lm	495 lm	400 lm	LED Module
Luminus Devices Inc. PT-54-G-L31-MPJ	16 mm	26.5 mm	13.5 A	525 nm	Flat	6.4 mm	With Connector	5.2 V	Green	34 lm/W	Rectangle	2.7 mm	2 mm	40 °C	2800 lm	2400 lm	2000 lm	LED Module
Luminus Devices Inc. PT-54-B-L31-EPD	16 mm	26.5 mm	13.5 A	462 nm	Flat	6.4 mm	With Connector	3.7 V	Blue	9 lm/W	Rectangle	2.7 mm	2 mm	40 °C	510 lm	430 lm	350 lm	LED Module

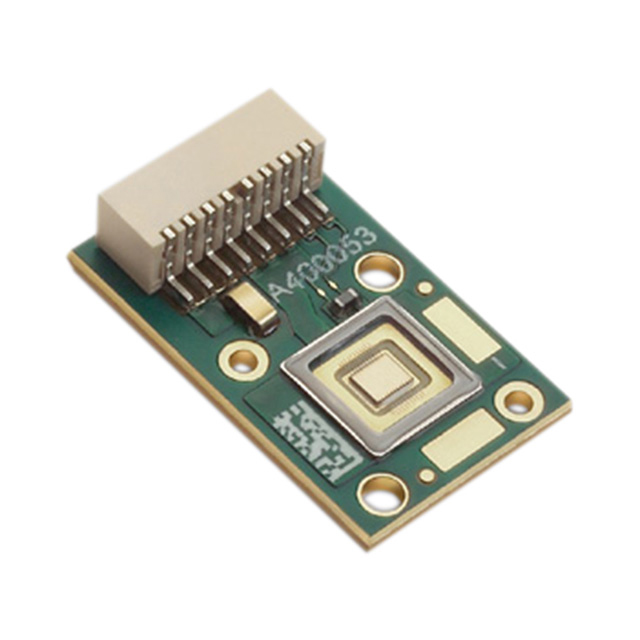

Luminus Devices Inc. PT-54-G-C21-MPE																		LED Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources

No documents available
