Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-IHM09M2 | X-NUCLEO-IHM09M2 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Motor Controller/Driver | Motor Controller/Driver |
| Platform | Nucleo | Nucleo |
| Type | Connectivity | Connectivity |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
X-NUCLEO-IHM09M2 Series
Motor control connector expansion board for STM32 Nucleo
| Part | Type | Platform | Contents | Function |
|---|---|---|---|---|
STMicroelectronics X-NUCLEO-IHM09M2 | Connectivity | Nucleo | Board(s) | Motor Controller/Driver |
STMicroelectronics X-NUCLEO-IHM09M2 | ||||
STMicroelectronics X-NUCLEO-IHM09M2 |
Description
General part information
X-NUCLEO-IHM09M2 Series

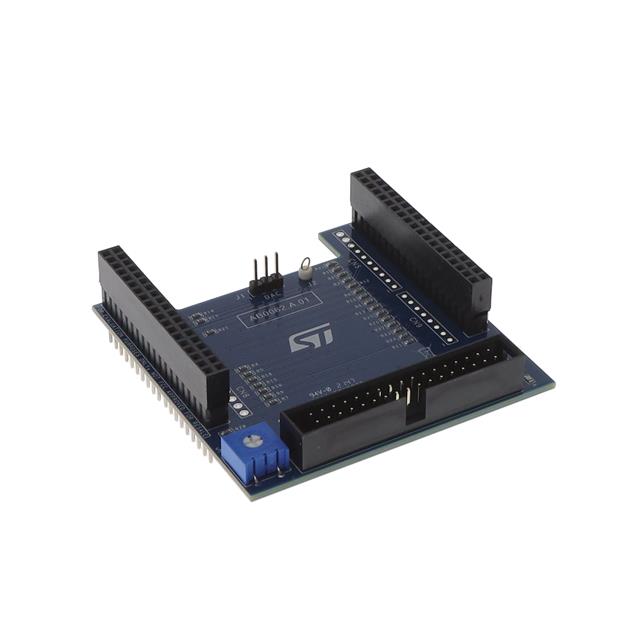

The X-NUCLEO-IHM09M2 is a motor control connector expansion board for STM32 Nucleo. It provides an easy way to evaluate motor control solutions for three-phase motors by adapting the STM32 Nucleo development board with an external ST motor control power board, thanks to the ST morpho and motor control connector.
The 34-pin motor control connector is compatible with most ST motor control power boards, which require an external digital section (MCU) to drive a three-phase motor.
The DAC connector supports the user code development and testing with easy access to the MCU peripherals.
