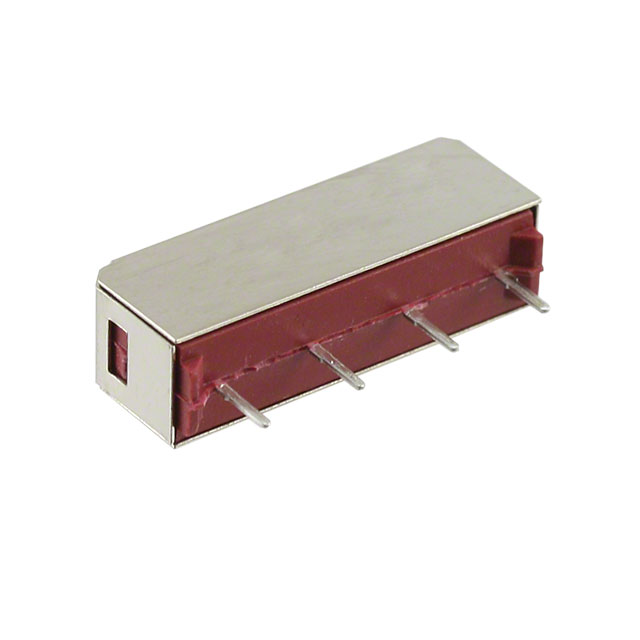

REED RELAY, SPST, 5V, MAG SHIELD ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9001-05-10

Active

Coto Technology

REED RELAY, SPST, 5V, MAG SHIELD ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	924	$ 3.71
Newark	Each	250	$ 3.83

Description

General part information

9001 Series

REED RELAY, SPST, 5V, MAG SHIELD ROHS COMPLIANT: YES

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9001-05-10	9001 Series

Coil Current	10 mA	10 - 12 mA
Coil Resistance	500 Ohms	1 - 500 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	5 VDC	5 - 12 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A), SPST-NC (1 Form B)
Contact Rating (Current)	0.5 A	0.5 A
Features	EMI Shielded	EMI Shielded, Diode
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	3.75 VDC	3.75 - 9 VDC
Must Release Voltage	0.4 VDC	0.4 - 1 VDC
Operate Time	0.35 ms	0.35 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Release Time	0.1 ms	0.1 ms
Switching Voltage	200 VDC, 200 VAC	200 VDC
Termination Style	PC Pin	PC Pin

9001 Series

REED RELAY, SPST-NO, 12 VDC, 9000 SERIES, THROUGH HOLE, 1 KOHM, 500 MA

Part	Coil Current	Coil Type	Coil Voltage	Features	Coil Resistance	Operate Time	Termination Style	Contact Form	Mounting Type	Release Time	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Contact Rating (Current)	Must Operate Voltage
Coto Technology 9001-12-11	12 mA	Non Latching	12 VDC	Diode, EMI Shielded	1 kOhms	0.35 ms	PC Pin	SPST-NO (1 Form A)	Through Hole	0.1 ms	200 VDC, 200 VAC	85 °C	-20 C	1 VDC	0.5 A	9 VDC
Coto Technology 9001-05-11	10 mA	Non Latching	5 VDC	Diode, EMI Shielded	500 Ohms	0.35 ms	PC Pin	SPST-NO (1 Form A)	Through Hole	0.1 ms	200 VDC, 200 VAC	85 °C	-20 C	0.4 VDC	0.5 A	3.75 VDC
Coto Technology 9001-12-10	12 mA	Non Latching	12 VDC	EMI Shielded	1 kOhms	0.35 ms	PC Pin	SPST-NO (1 Form A)	Through Hole	0.1 ms	200 VDC, 200 VAC	85 °C	-20 C	1 VDC	0.5 A	9 VDC
Coto Technology 9001-05-00	10 mA	Non Latching	5 VDC		500 Ohms	0.35 ms	PC Pin	SPST-NO (1 Form A)	Through Hole	0.1 ms	200 VDC, 200 VAC	85 °C	-20 C	0.4 VDC	0.5 A	3.75 VDC
Coto Technology 9001-05-01	10 mA	Non Latching	5 VDC	Diode	500 Ohms	0.35 ms	PC Pin	SPST-NO (1 Form A)	Through Hole	0.1 ms	200 VDC, 200 VAC	85 °C	-20 C	0.4 VDC	0.5 A	3.75 VDC
Coto Technology 9001-05-02	10 mA	Non Latching	5 VDC		500 Ohms	0.35 ms	PC Pin	SPST-NC (1 Form B)	Through Hole	0.1 ms	200 VDC, 200 VAC	85 °C	-20 C	0.4 VDC	0.5 A	3.75 VDC
Coto Technology 9001-05-10	10 mA	Non Latching	5 VDC	EMI Shielded	500 Ohms	0.35 ms	PC Pin	SPST-NO (1 Form A)	Through Hole	0.1 ms	200 VDC, 200 VAC	85 °C	-20 C	0.4 VDC	0.5 A	3.75 VDC
