9001-05-01

Active

Coto Technology

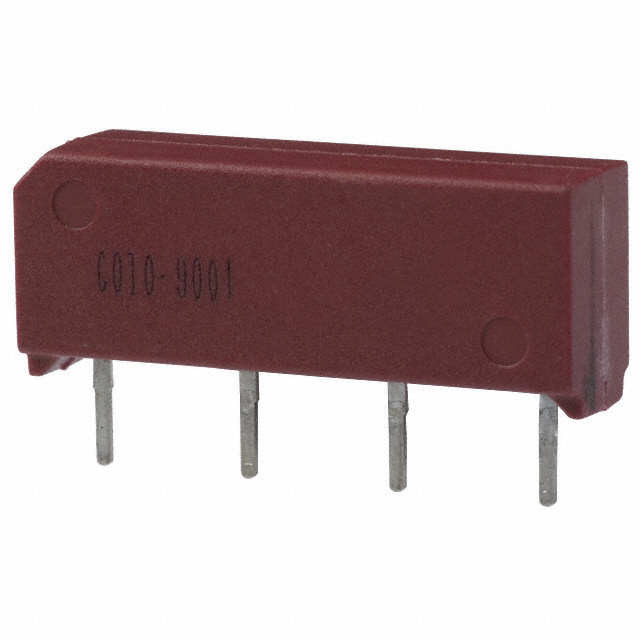

RELAY REED SPST 500MA 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9001-05-01

Active

Coto Technology

RELAY REED SPST 500MA 5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9001-05-01	9001 Series

Coil Current	10 mA	10 - 12 mA
Coil Resistance	500 Ohms	1 - 500 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	5 VDC	5 - 12 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A), SPST-NC (1 Form B)
Contact Rating (Current)	0.5 A	0.5 A
Features	Diode	EMI Shielded, Diode
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	3.75 VDC	3.75 - 9 VDC
Must Release Voltage	0.4 VDC	0.4 - 1 VDC
Operate Time	0.35 ms	0.35 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Release Time	0.1 ms	0.1 ms
Switching Voltage	200 VDC, 200 VAC	200 VDC
Termination Style	PC Pin	PC Pin

9001 Series

REED RELAY, SPST-NO, 12 VDC, 9000 SERIES, THROUGH HOLE, 1 KOHM, 500 MA

Part	Coil Current	Coil Type	Coil Voltage	Features	Coil Resistance	Operate Time	Termination Style	Contact Form	Mounting Type	Release Time	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Contact Rating (Current)	Must Operate Voltage
Coto Technology 9001-12-11	12 mA	Non Latching	12 VDC	Diode, EMI Shielded	1 kOhms	0.35 ms	PC Pin	SPST-NO (1 Form A)	Through Hole	0.1 ms	200 VDC, 200 VAC	85 °C	-20 C	1 VDC	0.5 A	9 VDC
Coto Technology 9001-05-11	10 mA	Non Latching	5 VDC	Diode, EMI Shielded	500 Ohms	0.35 ms	PC Pin	SPST-NO (1 Form A)	Through Hole	0.1 ms	200 VDC, 200 VAC	85 °C	-20 C	0.4 VDC	0.5 A	3.75 VDC
Coto Technology 9001-12-10	12 mA	Non Latching	12 VDC	EMI Shielded	1 kOhms	0.35 ms	PC Pin	SPST-NO (1 Form A)	Through Hole	0.1 ms	200 VDC, 200 VAC	85 °C	-20 C	1 VDC	0.5 A	9 VDC
Coto Technology 9001-05-00	10 mA	Non Latching	5 VDC		500 Ohms	0.35 ms	PC Pin	SPST-NO (1 Form A)	Through Hole	0.1 ms	200 VDC, 200 VAC	85 °C	-20 C	0.4 VDC	0.5 A	3.75 VDC
Coto Technology 9001-05-01	10 mA	Non Latching	5 VDC	Diode	500 Ohms	0.35 ms	PC Pin	SPST-NO (1 Form A)	Through Hole	0.1 ms	200 VDC, 200 VAC	85 °C	-20 C	0.4 VDC	0.5 A	3.75 VDC
Coto Technology 9001-05-02	10 mA	Non Latching	5 VDC		500 Ohms	0.35 ms	PC Pin	SPST-NC (1 Form B)	Through Hole	0.1 ms	200 VDC, 200 VAC	85 °C	-20 C	0.4 VDC	0.5 A	3.75 VDC
Coto Technology 9001-05-10	10 mA	Non Latching	5 VDC	EMI Shielded	500 Ohms	0.35 ms	PC Pin	SPST-NO (1 Form A)	Through Hole	0.1 ms	200 VDC, 200 VAC	85 °C	-20 C	0.4 VDC	0.5 A	3.75 VDC
Coto Technology 9001-12-00	12 mA	Non Latching	12 VDC		1 kOhms	0.35 ms	PC Pin	SPST-NO (1 Form A)	Through Hole	0.1 ms	200 VDC, 200 VAC	85 °C	-20 C	1 VDC	0.5 A	9 VDC
Coto Technology 9001-12-01	12 mA	Non Latching	12 VDC	Diode	1 kOhms	0.35 ms	PC Pin	SPST-NO (1 Form A)	Through Hole	0.1 ms	200 VDC, 200 VAC	85 °C	-20 C	1 VDC	0.5 A	9 VDC
