General part information
Circular Push Pull Connectors
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 3042793 | SP Series |
|---|---|---|
| Color | Blue | Blue, Gray |
| Current - IEC | 32 A | 24 - 32 A |
| Current - UL | 30 A | 20 - 30 A |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Insulation Height | 41.5 mm | 39 - 41.5 mm |
| Insulation Height | 1.634 " | 1.535 - 1.634 " |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Levels | 1 | 1 |
| Number of Positions | 1 | 1 |
| Positions Per Level | 1 | 1 - 5 |
| Termination Style | Screwless - Spring Cage, Tension Clamp | Screwless - Spring Cage, Tension Clamp |
| Type | Plug, Female Sockets | Plug, Female Sockets |
| Voltage - IEC | 800 V | 500 - 800 V |
| Voltage - UL | - | 300 V |
| Wire Gauge or Range - AWG [Max] | 28 AWG | 28 AWG |
| Wire Gauge or Range - AWG [Min] | 10 AWG | 10 - 12 AWG |
| Wire Gauge or Range - mm² [Max] | 6 mm² | 4 - 6 mm² |
| Wire Gauge or Range - mm² [Min] | 0.08 mm² | 0.08 mm² |
| Wire Strip Length | 10 mm | 10 mm |
Circular Push Pull Connectors
| Part | Type | Housing Material | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Number of Positions | Positions Per Level | Voltage - IEC | Material Flammability Rating | Number of Levels | Current - UL | Insulation Height | Insulation Height | Termination Style | Current - IEC | Wire Strip Length | Mounting Type | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Color | Voltage - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

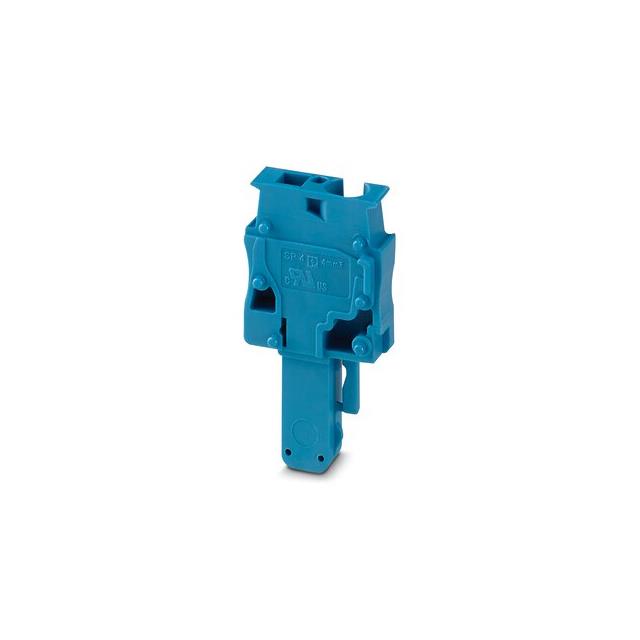

Phoenix Contact 3042793 | Plug, Female Sockets | Polyamide (PA), Nylon | 10 AWG | 28 AWG | 1 | 1 | 800 V | UL94 V-0 | 1 | 30 A | 41.5 mm | 1.634 " | Screwless - Spring Cage, Tension Clamp | 32 A | 10 mm | Free Hanging (In-Line) | 0.08 mm² | 6 mm² | Blue | |
Phoenix Contact 3040143 | Plug, Female Sockets | Polyamide (PA), Nylon | 12 AWG | 28 AWG | 5 | 500 V | UL94 V-0 | 1 | 20 A | 39 mm | 1.535 in | Screwless - Spring Cage, Tension Clamp | 24 A | 10 mm | Free Hanging (In-Line) | 0.08 mm² | 4 mm² | Gray | 300 V |
