3040143

Active

Phoenix Contact

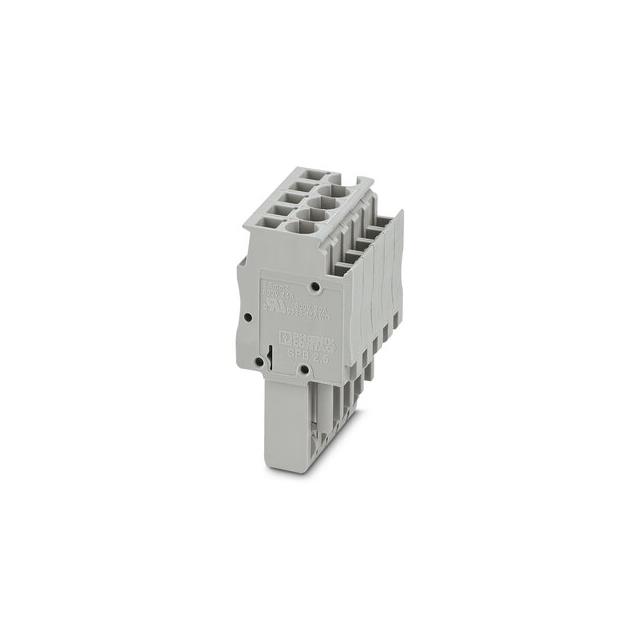

DIN RAIL TERMINAL BLOCKS SPB 2.5/ 5

Search across all available documentation for this part.

Active

Phoenix Contact

DIN RAIL TERMINAL BLOCKS SPB 2.5/ 5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Circular Push Pull Connectors

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	3040143	SP Series

Color	Gray	Blue, Gray
Current - IEC	24 A	24 - 32 A
Current - UL	20 A	20 - 30 A
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	1.535 in	1.535 - 1.634 "
Insulation Height	39 mm	39 - 41.5 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	-	1
Positions Per Level	5	1 - 5
Termination Style	Screwless - Spring Cage, Tension Clamp	Screwless - Spring Cage, Tension Clamp
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - IEC	500 V	500 - 800 V
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	28 AWG	28 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	10 - 12 AWG
Wire Gauge or Range - mm² [Max]	4 mm²	4 - 6 mm²
Wire Gauge or Range - mm² [Min]	0.08 mm²	0.08 mm²
Wire Strip Length	10 mm	10 mm

Circular Push Pull Connectors

Part	Type	Housing Material	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Positions	Positions Per Level	Voltage - IEC	Material Flammability Rating	Number of Levels	Current - UL	Insulation Height	Insulation Height	Termination Style	Current - IEC	Wire Strip Length	Mounting Type	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Color	Voltage - UL
Phoenix Contact 3042793	Plug, Female Sockets	Polyamide (PA), Nylon	10 AWG	28 AWG	1	1	800 V	UL94 V-0	1	30 A	41.5 mm	1.634 "	Screwless - Spring Cage, Tension Clamp	32 A	10 mm	Free Hanging (In-Line)	0.08 mm²	6 mm²	Blue
Phoenix Contact 3040143	Plug, Female Sockets	Polyamide (PA), Nylon	12 AWG	28 AWG		5	500 V	UL94 V-0	1	20 A	39 mm	1.535 in	Screwless - Spring Cage, Tension Clamp	24 A	10 mm	Free Hanging (In-Line)	0.08 mm²	4 mm²	Gray	300 V
