M80-4183298

Active

Harwin Inc.

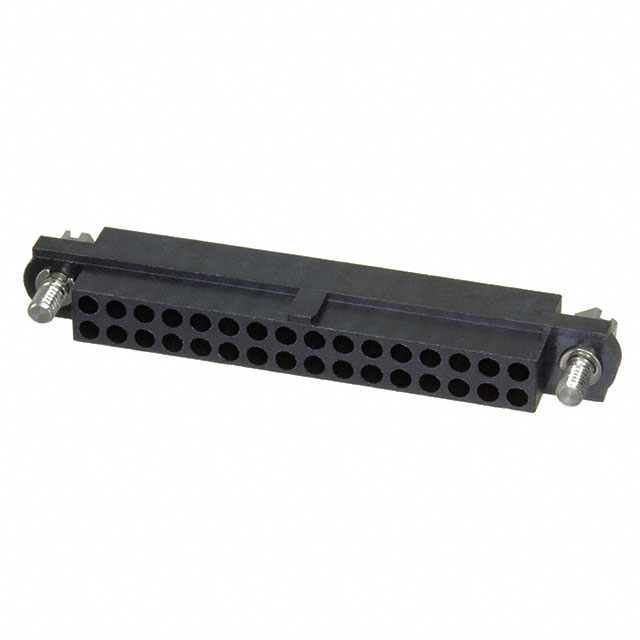

16+16 POS. FEMALE DIL CABLE HOUSING, 101LOK ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Z80-444 +3

M80-4183298

Active

Harwin Inc.

16+16 POS. FEMALE DIL CABLE HOUSING, 101LOK ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Z80-444 +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4183298

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Mating Flange, Polarizing Key
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

M80-418 Series

Part	Connector Type	Number of Rows	Row Spacing	Row Spacing	Contact Type	Pitch [x]	Pitch [x]	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Note	Features	Contact Termination	Color	Number of Positions	Mounting Type
Harwin Inc. M80-4183698	Receptacle	2	2 mm	0.079 in	Female Socket	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Contacts Not Included	Mating Flange Polarizing Key	Crimp	Black	36	Free Hanging (In-Line)
Harwin Inc. M80-4184098	Receptacle	2	2 mm	0.079 in	Female Socket	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Contacts Not Included	Mating Flange Polarizing Key	Crimp	Black	40	Free Hanging (In-Line)
Harwin Inc. M80-4184898	Receptacle	2	2 mm	0.079 in	Female Socket	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Contacts Not Included	Mating Flange Polarizing Key	Crimp	Black	48	Free Hanging (In-Line)
Harwin Inc. M80-4184498	Receptacle	2	2 mm	0.079 in	Female Socket	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Contacts Not Included	Mating Flange Polarizing Key	Crimp	Black	44	Free Hanging (In-Line)
Harwin Inc. M80-4183298	Receptacle	2	2 mm	0.079 in	Female Socket	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Contacts Not Included	Mating Flange Polarizing Key	Crimp	Black		Free Hanging (In-Line)
Harwin Inc. M80-4180698	Receptacle	2	2 mm	0.079 in	Female Socket	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Contacts Not Included	Mating Flange Polarizing Key	Crimp	Black	6	Free Hanging (In-Line)
Harwin Inc. M80-4183898	Receptacle	2	2 mm	0.079 in	Female Socket	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Contacts Not Included	Mating Flange Polarizing Key	Crimp	Black	38	Free Hanging (In-Line)
Harwin Inc. M80-4184698	Receptacle	2	2 mm	0.079 in	Female Socket	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Contacts Not Included	Mating Flange Polarizing Key	Crimp	Black	46	Free Hanging (In-Line)
Harwin Inc. M80-4185098	Receptacle	2	2 mm	0.079 in	Female Socket	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Contacts Not Included	Mating Flange Polarizing Key	Crimp	Black	50	Free Hanging (In-Line)
Harwin Inc. M80-4182698	Receptacle	2	2 mm	0.079 in	Female Socket	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Contacts Not Included	Mating Flange Polarizing Key	Crimp	Black	26	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	68	$ 7.82
Newark	Each	10	$ 10.49
		50	$ 9.84
		100	$ 9.18
		250	$ 8.48
		500	$ 7.83
		1000	$ 7.17
		2500	$ 6.47
