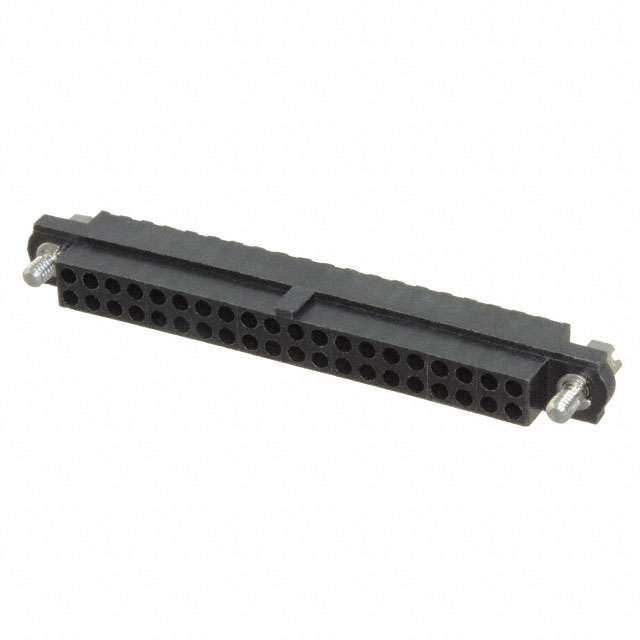

M80-4184098
ActiveHarwin Inc.
20+20 POS. FEMALE DIL CABLE HOUSING, 101LOK ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M80-4184098
ActiveHarwin Inc.
20+20 POS. FEMALE DIL CABLE HOUSING, 101LOK ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-4184098 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | Mating Flange, Polarizing Key |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Row Spacing | 2 mm |
| Row Spacing | 0.079 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-418 Series
40 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
